Firewall crack repair
I noted that my firewall was cracking at the starter cable pass-through.
- Attachments
-
- N76415 firewall cracks.jpg (62.52 KiB) Viewed 1197 times
-
8475
- Posts: 63
- Joined: Sun May 26, 2019 11:38 am
- Name: Dave Sprinkle
- Location: SF Bay
- Aircraft Type: 140
- Occupation-Interests: Engineer
- Contact:
Re: Firewall crack repair
I cut out the cracked section.
- Attachments
-
- N76415 firewall cracks removed.jpg (66.95 KiB) Viewed 1196 times
-
8475
- Posts: 63
- Joined: Sun May 26, 2019 11:38 am
- Name: Dave Sprinkle
- Location: SF Bay
- Aircraft Type: 140
- Occupation-Interests: Engineer
- Contact:
Re: Firewall crack repair

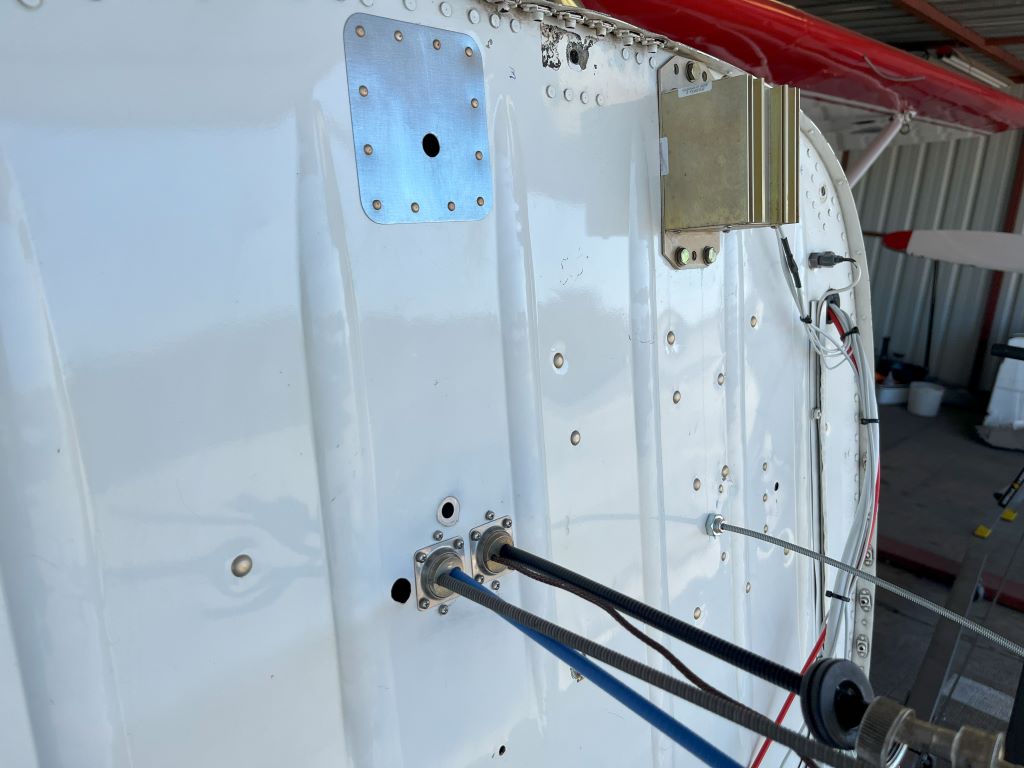

I added a patch to cover the damaged section. Also added a couple of spherical "eyeball" fittings to support the penetrations of the other cables (mixture, throttle, oil temp, tach).
- Attachments
-
- N76415 firewall patch and cable fittings.jpg (79.64 KiB) Viewed 1195 times
-
8475
- Posts: 63
- Joined: Sun May 26, 2019 11:38 am
- Name: Dave Sprinkle
- Location: SF Bay
- Aircraft Type: 140
- Occupation-Interests: Engineer
- Contact:
Re: Firewall crack repair
Here's a close-up of the spherical cable fittings These are made by DoubleTee. I had these custom drilled to support two pass-throughs each. I highly recommend these.
https://www.firewallfittings.com/product/ttp-s-custom/
https://www.firewallfittings.com/product/ttp-s-custom/
- Attachments
-
- N76415 firewall cable fittings.jpg (56.14 KiB) Viewed 1195 times
Last edited by 8475 on Tue Sep 24, 2024 11:39 am, edited 1 time in total.
-
8475
- Posts: 63
- Joined: Sun May 26, 2019 11:38 am
- Name: Dave Sprinkle
- Location: SF Bay
- Aircraft Type: 140
- Occupation-Interests: Engineer
- Contact:
Re: Firewall crack repair

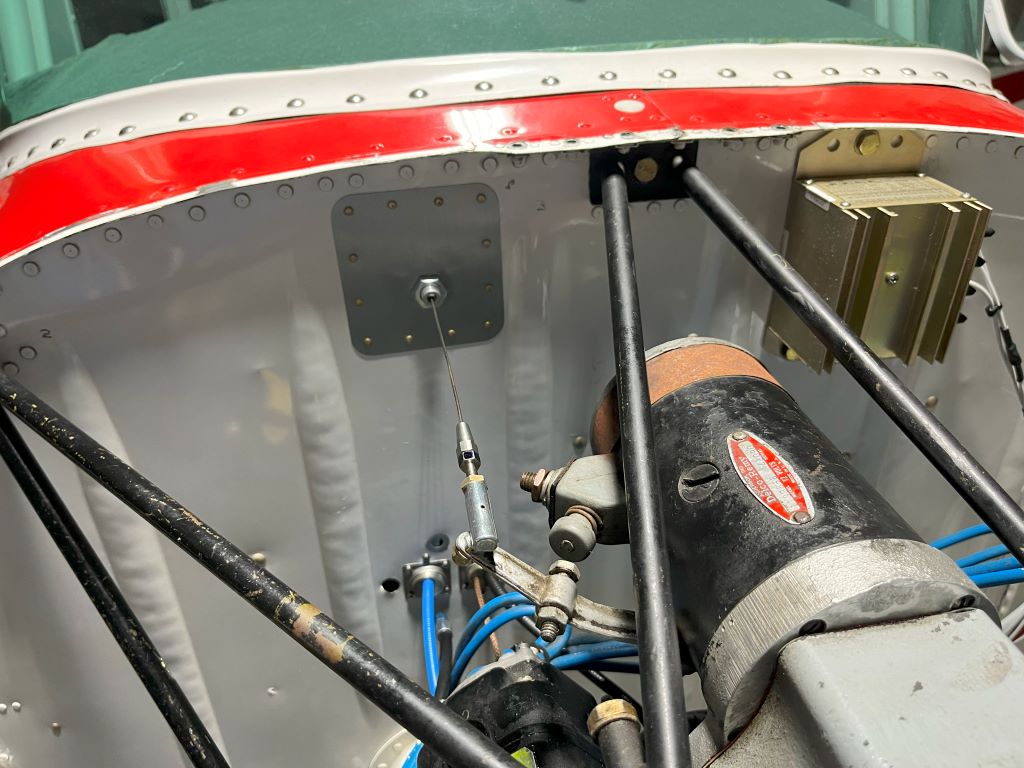

Here's a picture of the finished installation. Really pleased with how this turned out.
- Attachments
-
- N76415 firewall cracks patched.jpg (116.55 KiB) Viewed 1195 times
-
