Tailwheel Tilt

[edidin]

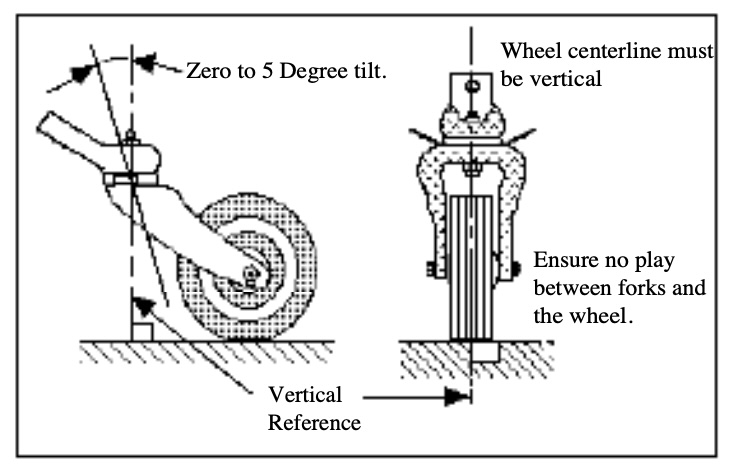

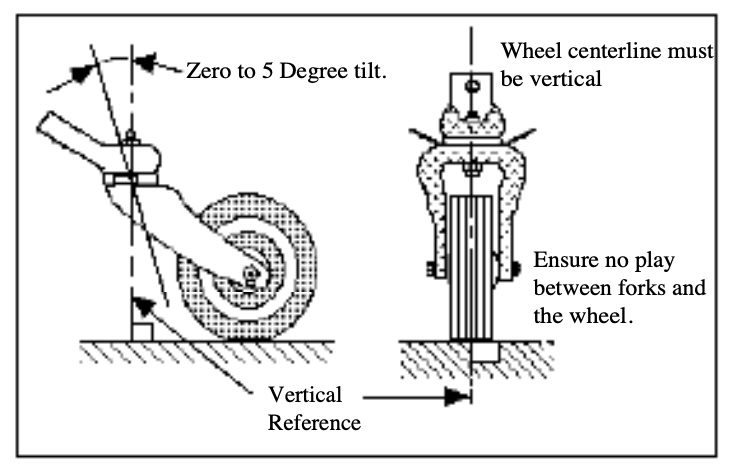

This illustration is from the very comprehensive Neil Wright article on the tailwheel assembly and alignment. While I understand the vertical reference line, it's not clear what the tilted line is referenced against. Any help appreciated.

Tailwheel Tilt Angle.jpg (77.57 KiB) Viewed 2073 times

[6597]

Try looking at it like this instead....

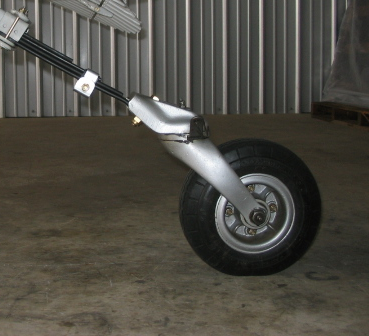

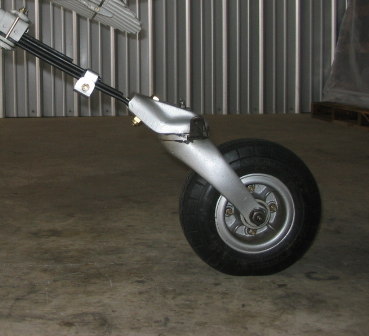

The top of the forks has a level plane that needs to be tilted backwards a little. This is my bird, this pic shows the slight tilt rear-ward. You want it to have a slight tilt rear-ward or pretty much level. Otherwise you get the 'shopping cart' wobble.

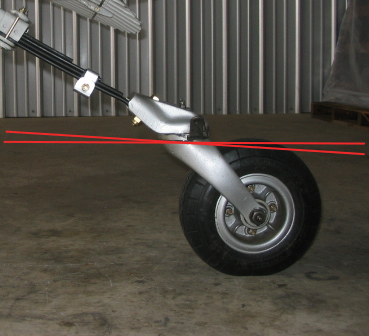

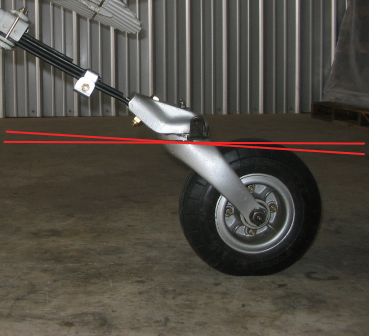

Here's a pic hopefully showing what we're trying to describe...


[6597]

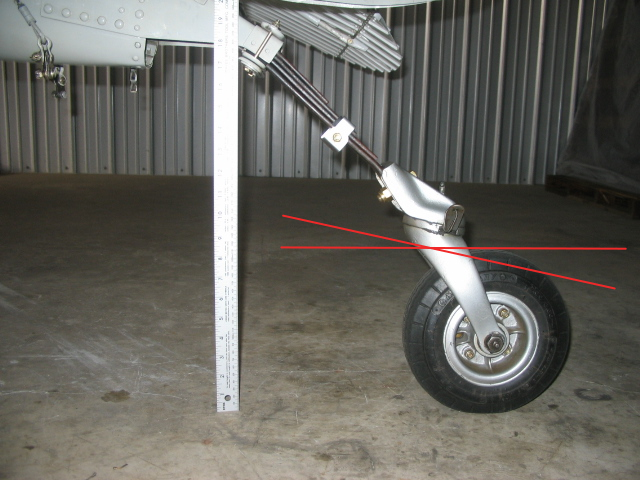

And here's an extreme view of the 'rear-ward' tilt, when I had the incorrect double-bend mainsprings on my bird. The tail was so much higher, I couldn't make a decent 3-point landing so I became a 'wheelie' guy.


[edidin]

Thanks for the quick reply - very helpful.
