I am missing my pilot side rudder kick panel (the sheet metal that goes between and around the rudder pedals. Anyone have a template to cut a new one?
Joshua
Rudder kick panel shape
Forum rules
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
-
8340
- Posts: 27
- Joined: Sun Oct 14, 2018 11:31 pm
- Name: Joshua G
- Aircraft Type:
- Occupation-Interests:
- Contact:
-
6898
- Posts: 331
- Joined: Tue May 01, 2018 7:00 am
- Name: Jeff T
- Location: IS65 Sandwich IL.
- Aircraft Type: 48 140 C90
- Occupation-Interests: Auto,Marine&Aviation Repair
- Contact:
Re: Rudder kick panel shape
David Lowe or Ken and Lorraine Morris?
Jeff T 1948 C-140 NC3600V
Past President 120 140 Assoc. 2019-2023
Past President 120 140 Assoc. 2019-2023
-
7313
- Posts: 52
- Joined: Sat Dec 22, 2018 1:35 pm
- Name: John P
- Aircraft Type:
- Occupation-Interests:
- Contact:
Re: Rudder kick panel shape
Our 120 apparently never had these covers. I would like to add them, so if anyone does come up with a template please post a link.
-
6597
- Posts: 380
- Joined: Tue May 01, 2018 7:00 am
- Name: David Sbur
- Location: Vancouver WA KVUO
- Aircraft Type: '46 140 0-200A
- Occupation-Interests: Agriculture
- Contact:
Re: Rudder kick panel shape

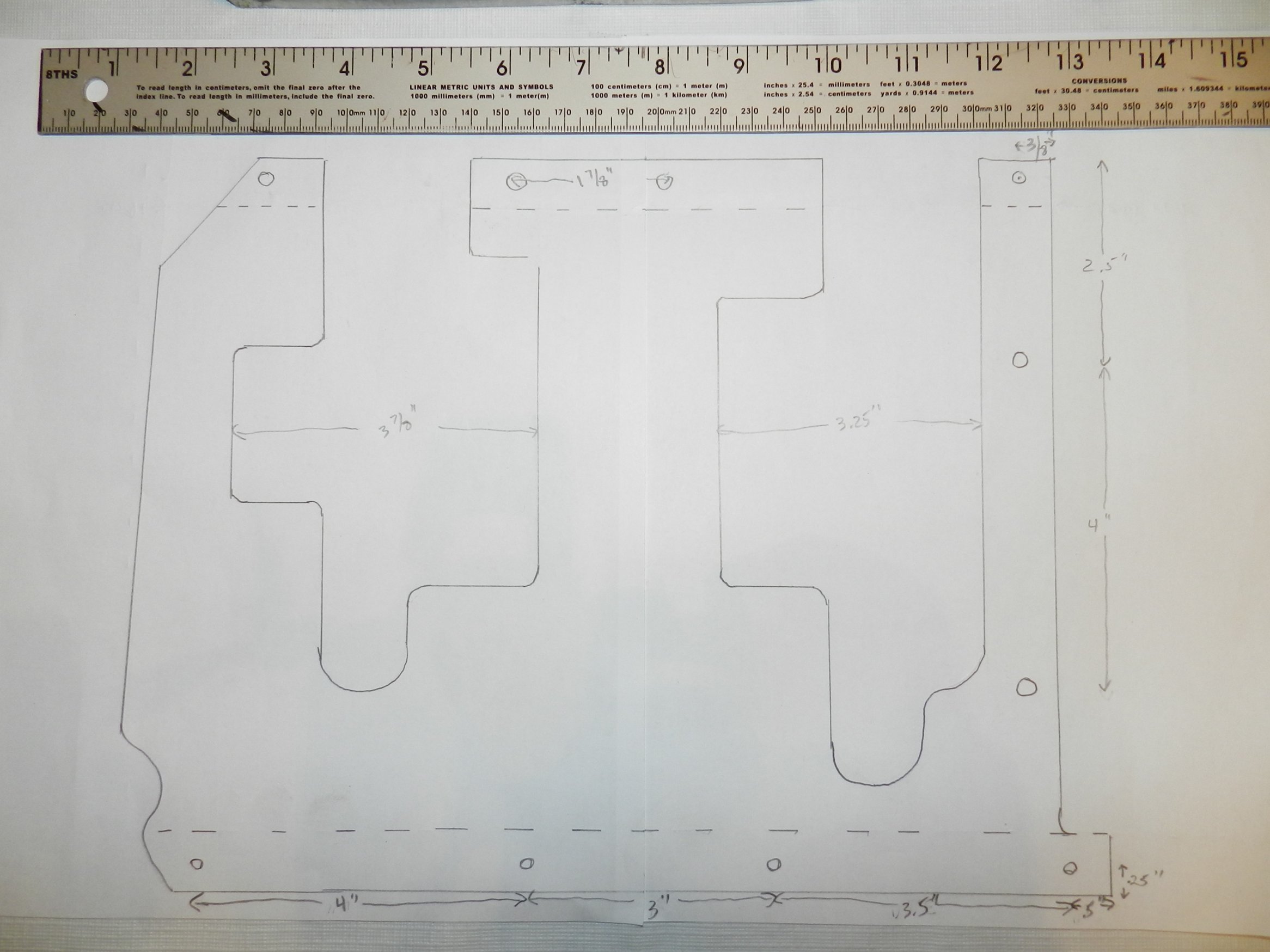

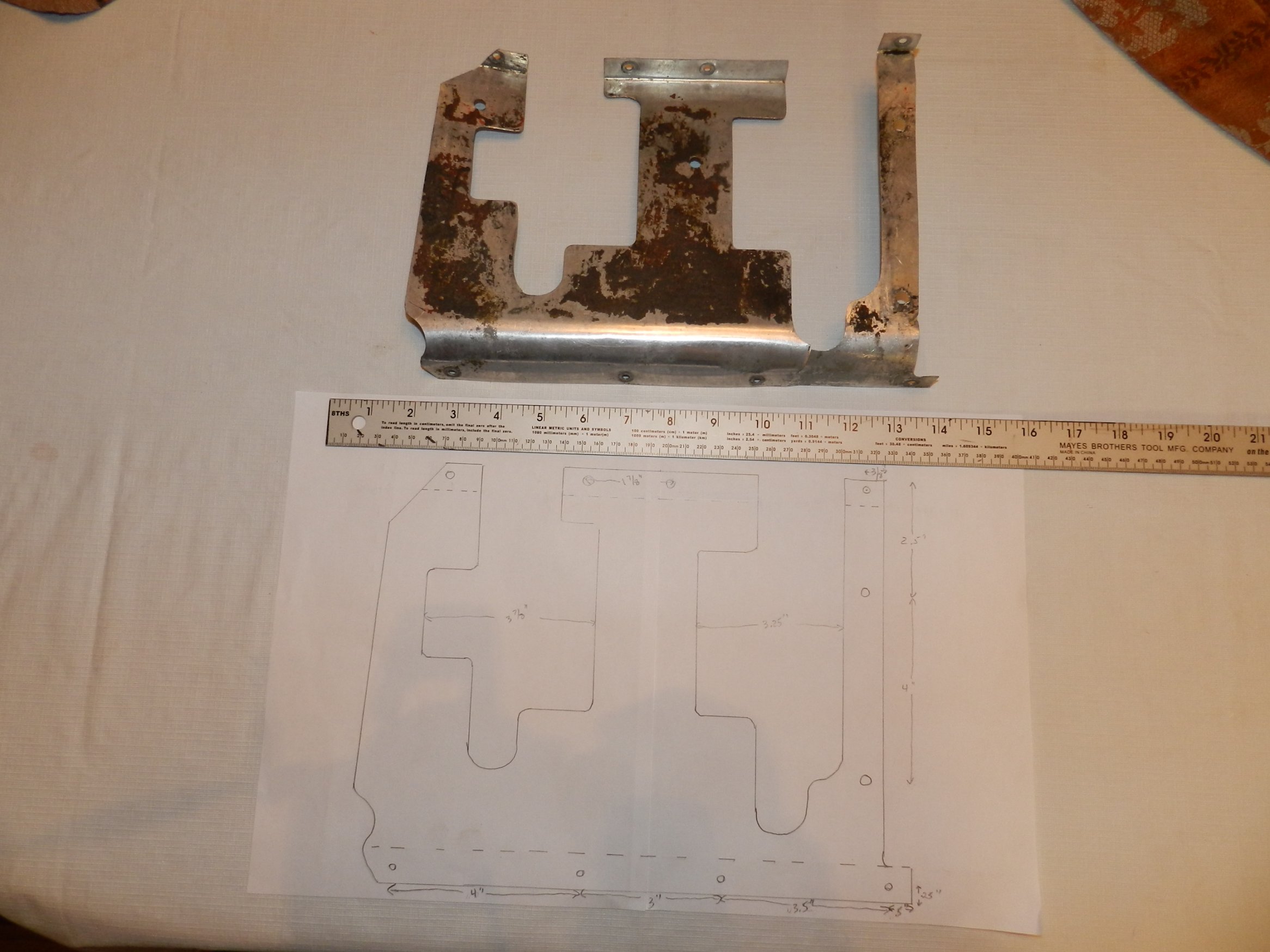

Not a draftsman by any means, but happened to have this old one for a pattern when I made a new one for my bird, .022-ish thick
- Attachments
-
- DSCN3440.JPG (391.08 KiB) Viewed 2348 times
-
- DSCN3441.JPG (324.78 KiB) Viewed 2348 times
-
8340
- Posts: 27
- Joined: Sun Oct 14, 2018 11:31 pm
- Name: Joshua G
- Aircraft Type:
- Occupation-Interests:
- Contact:
Re: Rudder kick panel shape
That is great, David! Thank you. I may draw up a new template once I get mine built. I really enjoy making drawings.
