Re: C-120 starter hard to engage

Post by 6863 »

Yes Josh they are good guys.
John Kliewer

"Make things as simple as possible but no simpler." Albert Einstiein

"Wheels move the body. Wings move the soul."
edidin
Posts: 147
Joined: Mon Jul 19, 2021 8:57 pm
Name:
Aircraft Type:
Occupation-Interests:
Contact:

Re: C-120 starter hard to engage

Post by edidin »

The 100 series service manual has an illustration showing the correct travel of the plunger that engages the clutch as well as the amount of clearance between the arm and the plunger. Has to be set up correctly - need a mechanic to do it.

Have not seen that spring on a C-85 so expect that a C-90 wouldn’t have it either. As I see it the spring will remove the specified clearance which may or may not affect longevity of the clutch. The clutch is apparently no longer available as an overhauled unit; the starter itself can be overhauled still.

LMK if need the diagram and will dig it up. Just did this about six months ago.
User avatar
6643
Posts: 2356
Joined: Tue May 01, 2018 7:00 am
Location: KLCI, NH
Name: John C
Aircraft Type: 1946 C140/C90
Occupation-Interests: A&P, semi-retired
Contact:

Re: C-120 starter hard to engage

Post by 6643 »

Here's the Ercoupe version of the bulletin, which includes the drawing.

The spring, if installed, pulls the lever away from the pinion, ensuring the clearance is maintained.
Attachments
ERC_SM40.pdf
(70.12 KiB) Downloaded 51 times
edidin
Posts: 147
Joined: Mon Jul 19, 2021 8:57 pm
Name:
Aircraft Type:
Occupation-Interests:
Contact:

Re: C-120 starter hard to engage

Post by edidin »

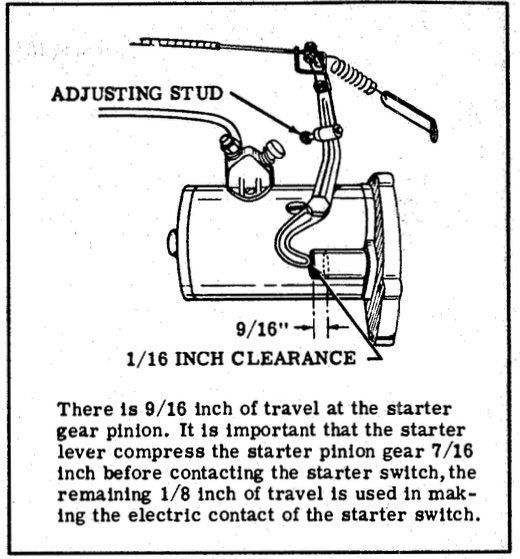

FWIW here is same figure from Cessna Series 100 Manual. There's a call out for 7/16 of travel prior to switch engagement which helped me properly set this starter up recently.
Cessna Series 100 Maint Pull Starter.jpg
Cessna Series 100 Maint Pull Starter.jpg (101.19 KiB) Viewed 183 times
User avatar
6643
Posts: 2356
Joined: Tue May 01, 2018 7:00 am
Location: KLCI, NH
Name: John C
Aircraft Type: 1946 C140/C90
Occupation-Interests: A&P, semi-retired
Contact:

Re: C-120 starter hard to engage

Post by 6643 »

Ah! And that one shows the return spring.

I don't have one and I always push the button all the way to the panel after starting.
