reskinning a rudder
Forum rules
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
-
- Posts: 105
- Joined: Tue May 01, 2018 7:00 am
- Name: ConsultEngr
- Aircraft Type: Cessna 140
- Occupation-Interests:
- Contact:
Re: reskinning a rudder

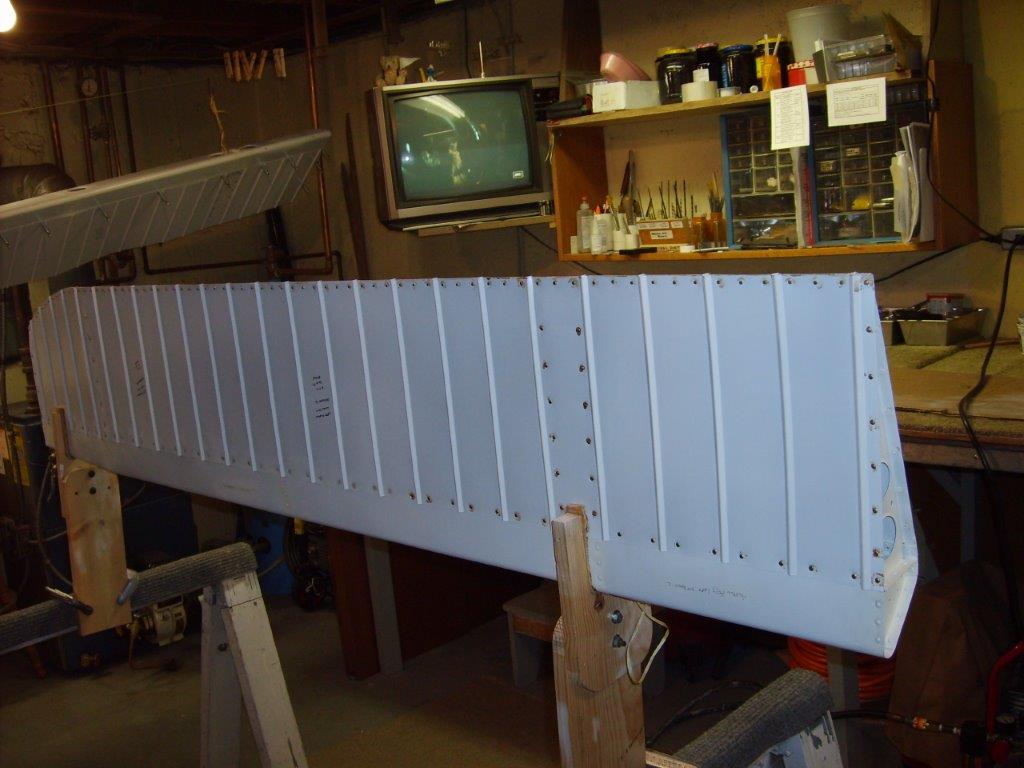

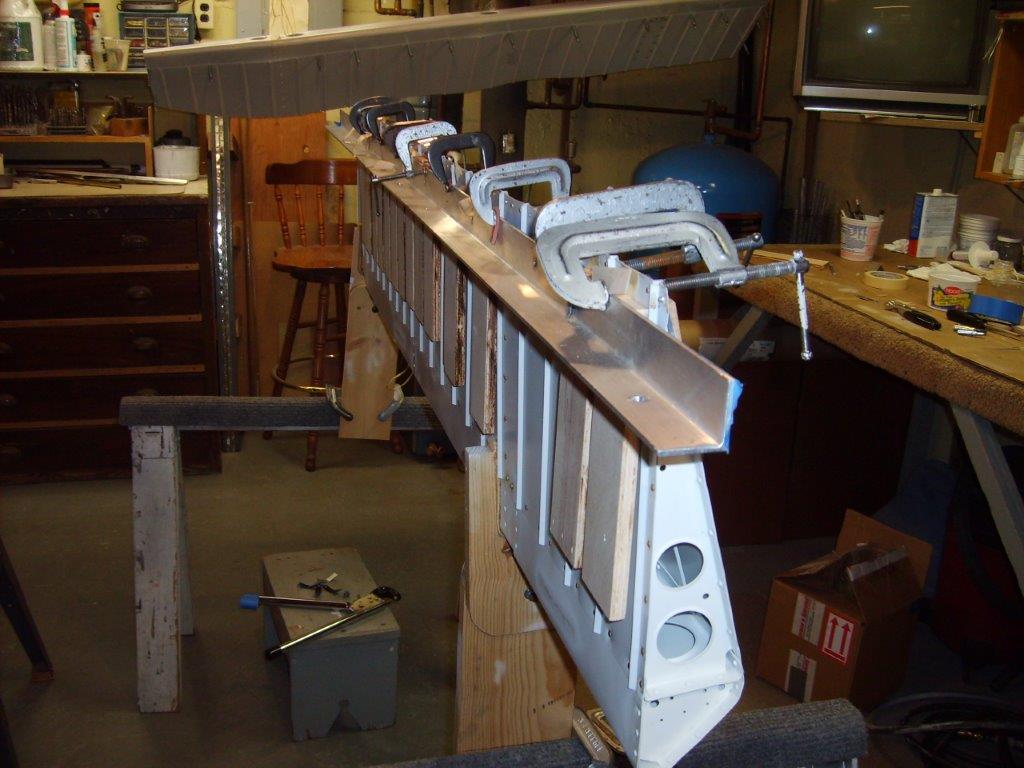

More aileron photos
- Attachments
-
- Aileron Riveting Rolling Skin End to End1.jpg (53.38 KiB) Viewed 4005 times
-
- Aileron Riveted in Holder.jpg (89.42 KiB) Viewed 4005 times
-
- Aileron Holding TE Straight with Alum Angle3.jpg (101.73 KiB) Viewed 4005 times
-
- Posts: 105
- Joined: Tue May 01, 2018 7:00 am
- Name: ConsultEngr
- Aircraft Type: Cessna 140
- Occupation-Interests:
- Contact:
Re: reskinning a rudder

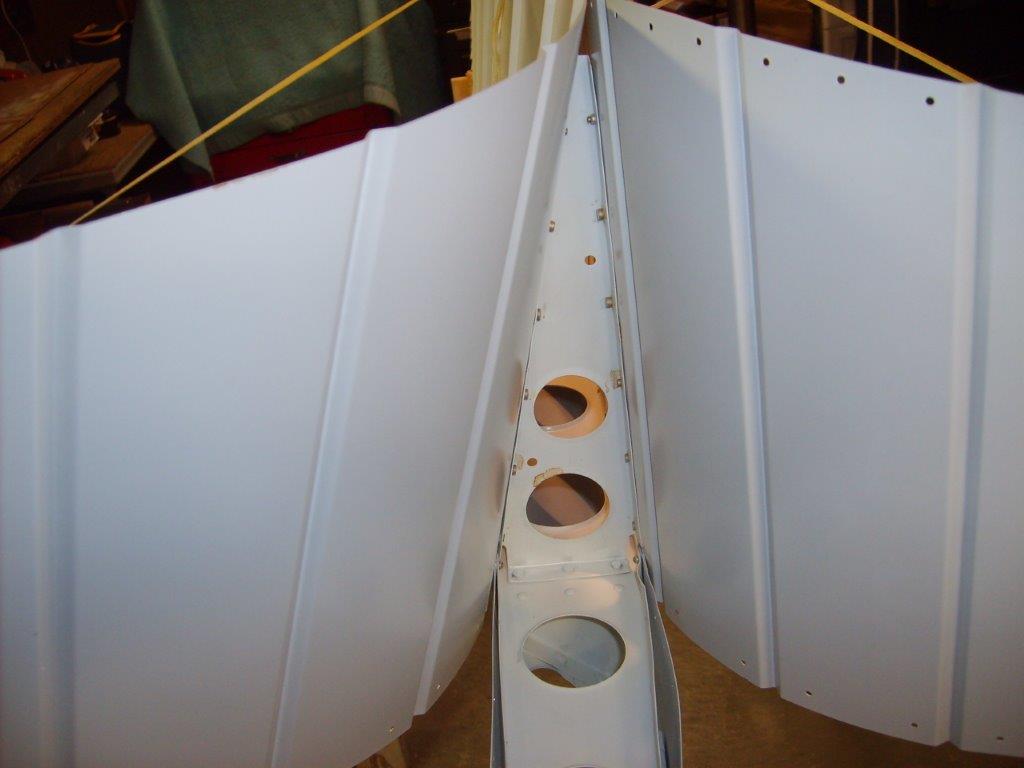

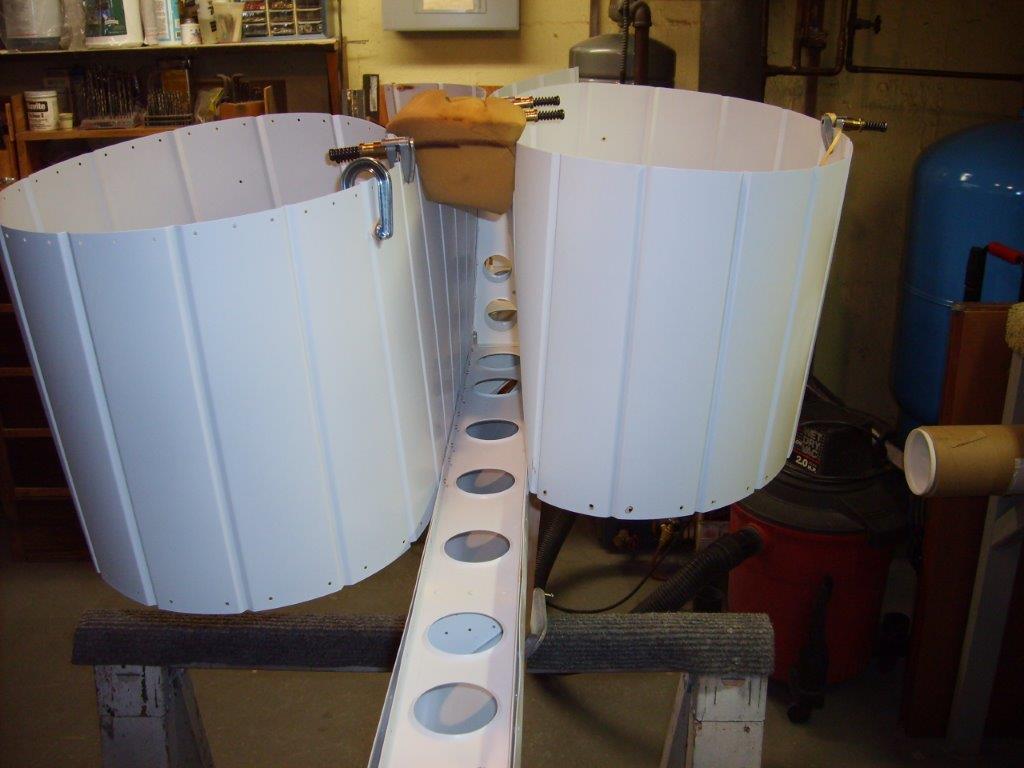

Aileron skin rolling from one end of spar to other
- Attachments
-
- Aileron Riveting Rolling Skin End to End2.jpg (74.51 KiB) Viewed 4005 times
-
- Posts: 105
- Joined: Tue May 01, 2018 7:00 am
- Name: ConsultEngr
- Aircraft Type: Cessna 140
- Occupation-Interests:
- Contact:
Re: reskinning a rudder
Also, if you need to replace your rudder hinge block as I did, attached is some information about where to get the block and bushing.
- Attachments
-
- Rudder Hinge Bottom 0431120.pdf
- (30.17 KiB) Downloaded 656 times
-
- Posts: 105
- Joined: Tue May 01, 2018 7:00 am
- Name: ConsultEngr
- Aircraft Type: Cessna 140
- Occupation-Interests:
- Contact:
Re: reskinning a rudder
Also, I had to redo my rudder NAV light wiring. I chose to upgrade the A2064 Grimes receptacle as Cessna had done in later models by adding a ground tang captured under the knurled nut rather than rely on getting the ground through the shell of Grime receptacle, then through the rudder skin, then rudder hinges back to the fuselage. I am running a separate ground wire through the rudder and back into the fuselage for attachment to a rear bulkhead. I will use two Molex type pin disconnects between the rudder and fuselage wrapped in shrink tube so I don't have to cut the wires. Photos that I have seen show the rudder NAV light wire running out the grommet in the rudder spar then around the fuselage gap between the vertical fin and rudder, then back into another grommet hole in the left fuselage skin just beneath the horizontal stabilizer. Because I am enclosing my NAV light wires in abrasion resistant braid, I enlarged the grommet hole in the rudder spar using a counterbore with a pilot and aluminum backup block clamped to the rudder spar. This worked out well. Forum is not allowing photo uploads at this time, but when it does, I will add to this post.
-
- Posts: 105
- Joined: Tue May 01, 2018 7:00 am
- Name: ConsultEngr
- Aircraft Type: Cessna 140
- Occupation-Interests:
- Contact:
Re: reskinning a rudder

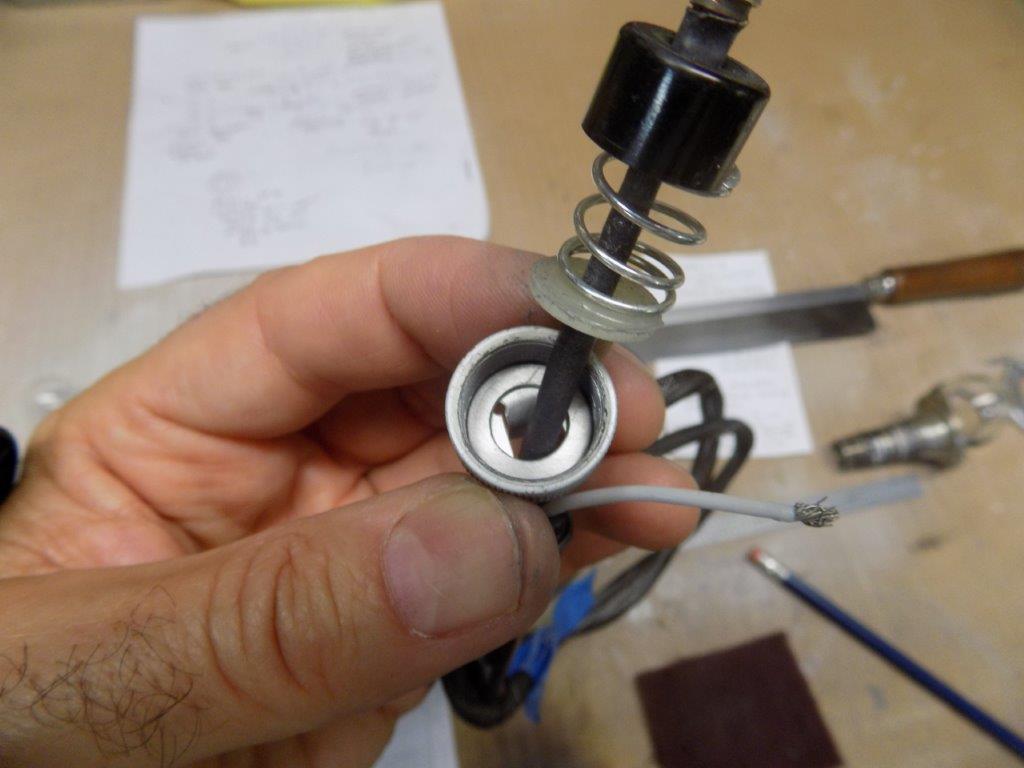

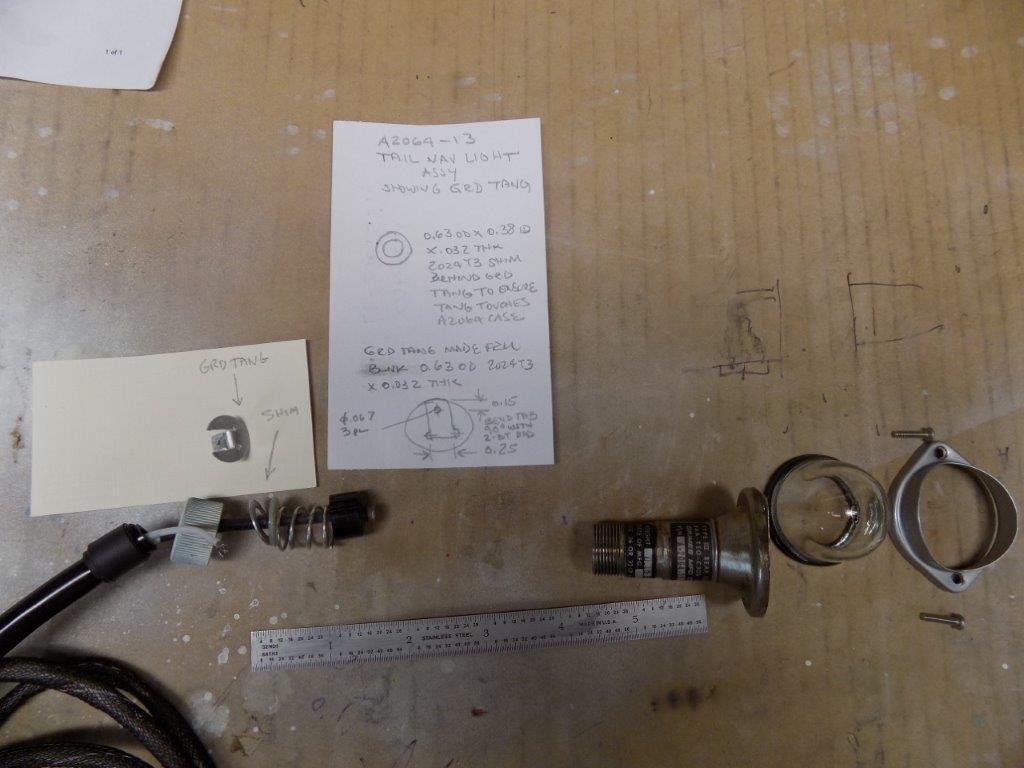

Photos
- Attachments
-
- Rudder NAV Light showing Ground Tang on Grimes Receptacle1.jpg (80.51 KiB) Viewed 4005 times
-
- Rudder NAV Light Receptacle Ground Tang.jpg (45.64 KiB) Viewed 4005 times
-
- Rudder NAV Light Parts and Ground Tang.jpg (85.65 KiB) Viewed 4005 times
-
- Posts: 105
- Joined: Tue May 01, 2018 7:00 am
- Name: ConsultEngr
- Aircraft Type: Cessna 140
- Occupation-Interests:
- Contact:
Re: reskinning a rudder

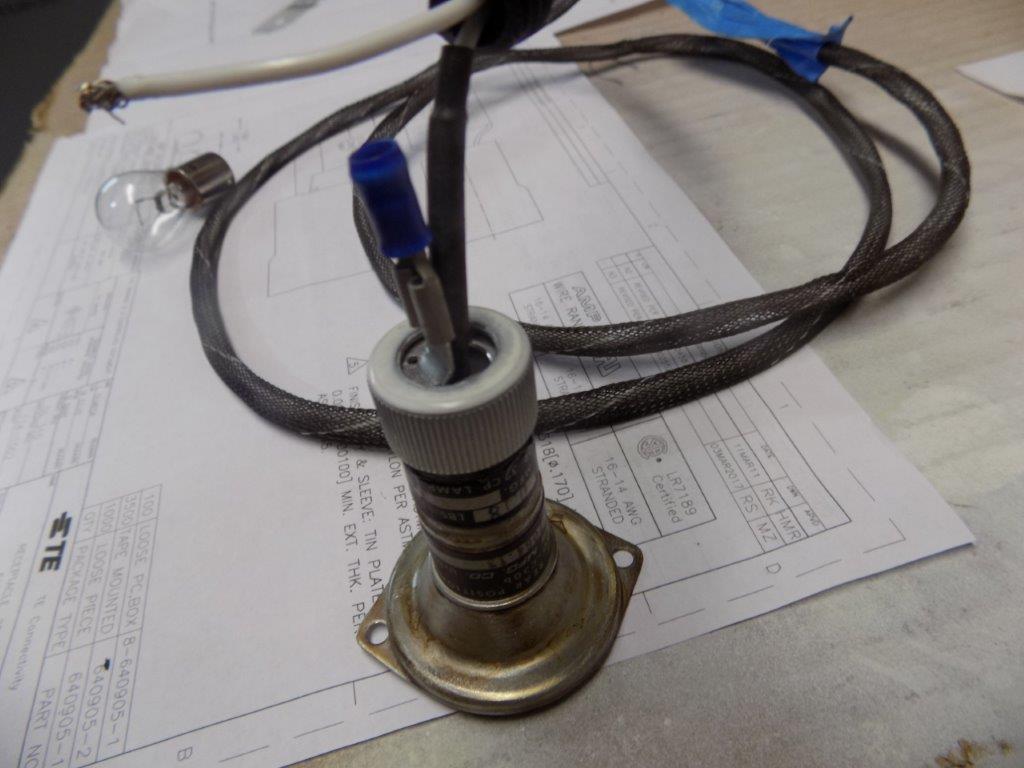

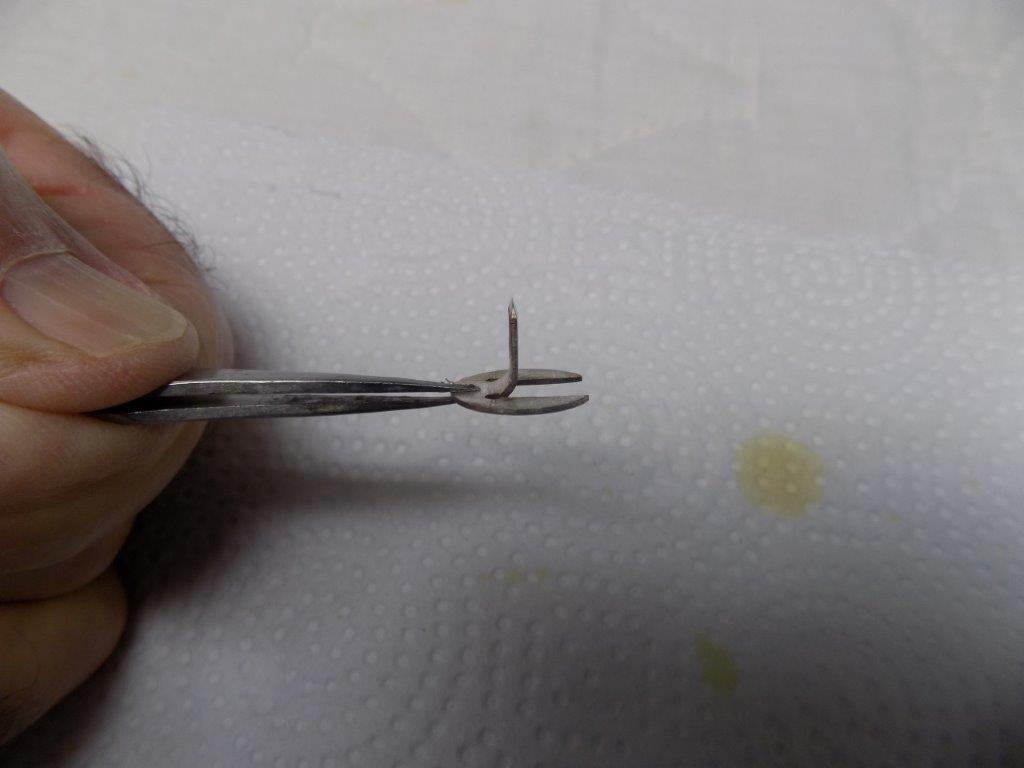

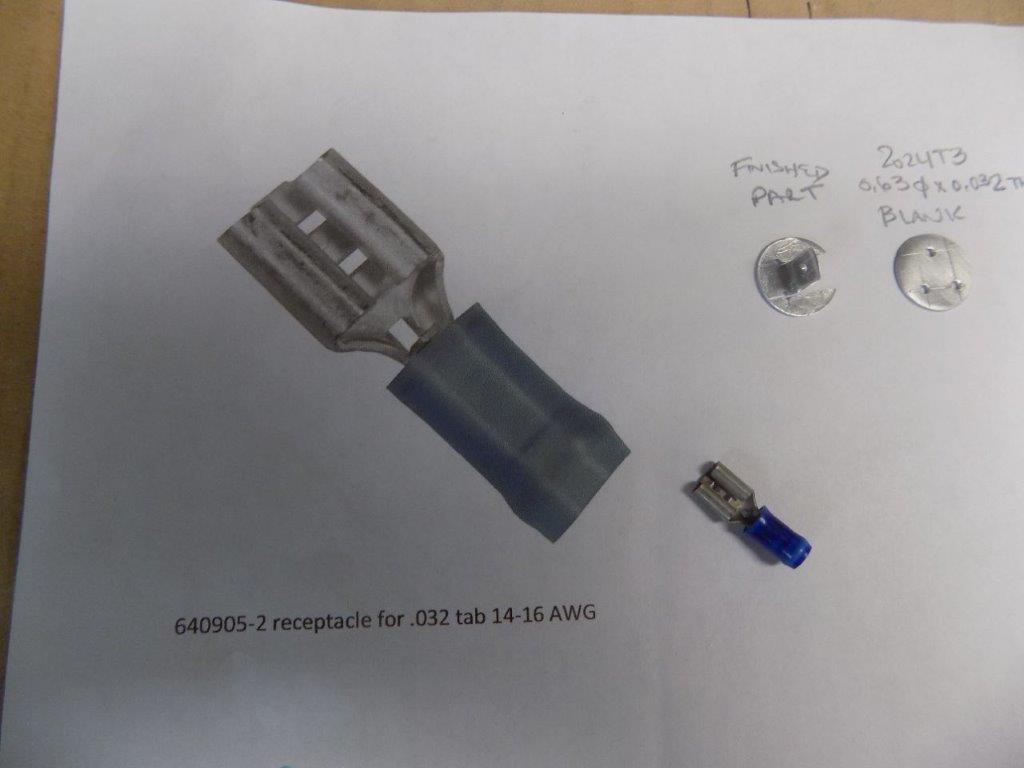

Rudder NaV light with ground tang and AMP spade PIDG connector
- Attachments
-
- Rudder NAV Light showing Ground Tang on Grimes Receptacle2.jpg (64.91 KiB) Viewed 4005 times
-
- Rudder NAV Light and Transflex Tygon Tube before Silicone Wrap.jpg (80.95 KiB) Viewed 4005 times
-
- RUDDER AMP SPADE CONNECTOR FOR NAV LIGHT GRD TANG.jpg (50.03 KiB) Viewed 4005 times
-
- Posts: 105
- Joined: Tue May 01, 2018 7:00 am
- Name: ConsultEngr
- Aircraft Type: Cessna 140
- Occupation-Interests:
- Contact:
Re: reskinning a rudder

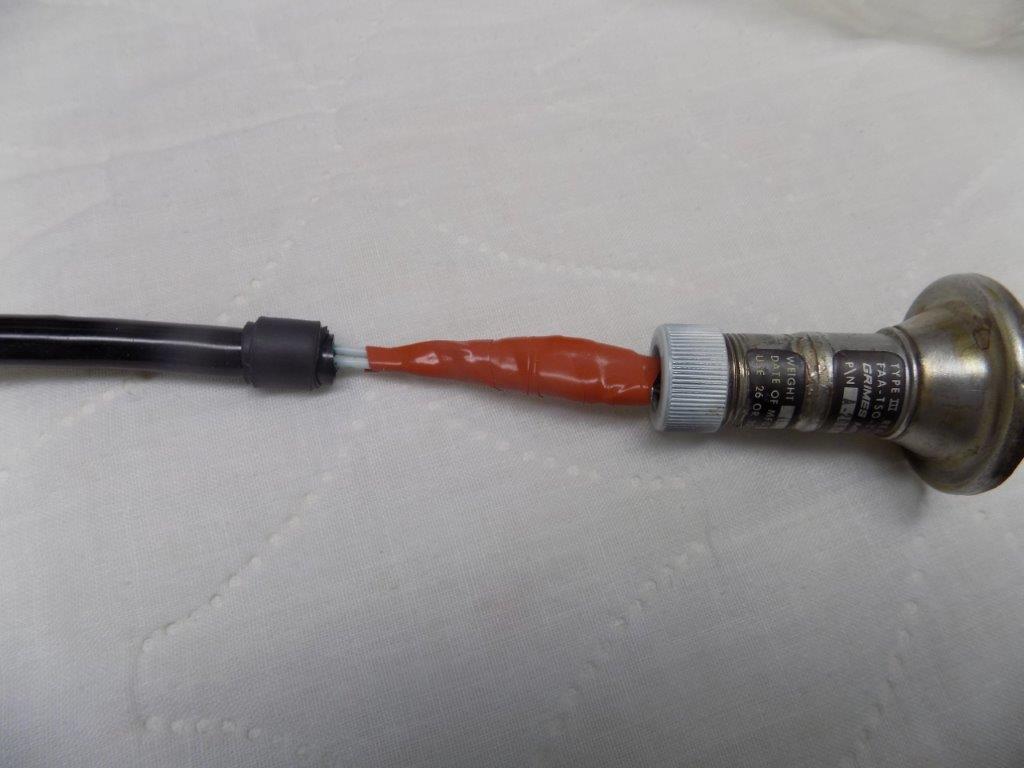

Rudder NAV light with positive and negative ground wires in braid with silicone wrapping tape to protect against moisture.
- Attachments
-
- Rudder NAV Light Silicone Wrap and Transflex Tygon Tube1.jpg (70.17 KiB) Viewed 4005 times
-
- Posts: 105
- Joined: Tue May 01, 2018 7:00 am
- Name: ConsultEngr
- Aircraft Type: Cessna 140
- Occupation-Interests:
- Contact:
Re: reskinning a rudder

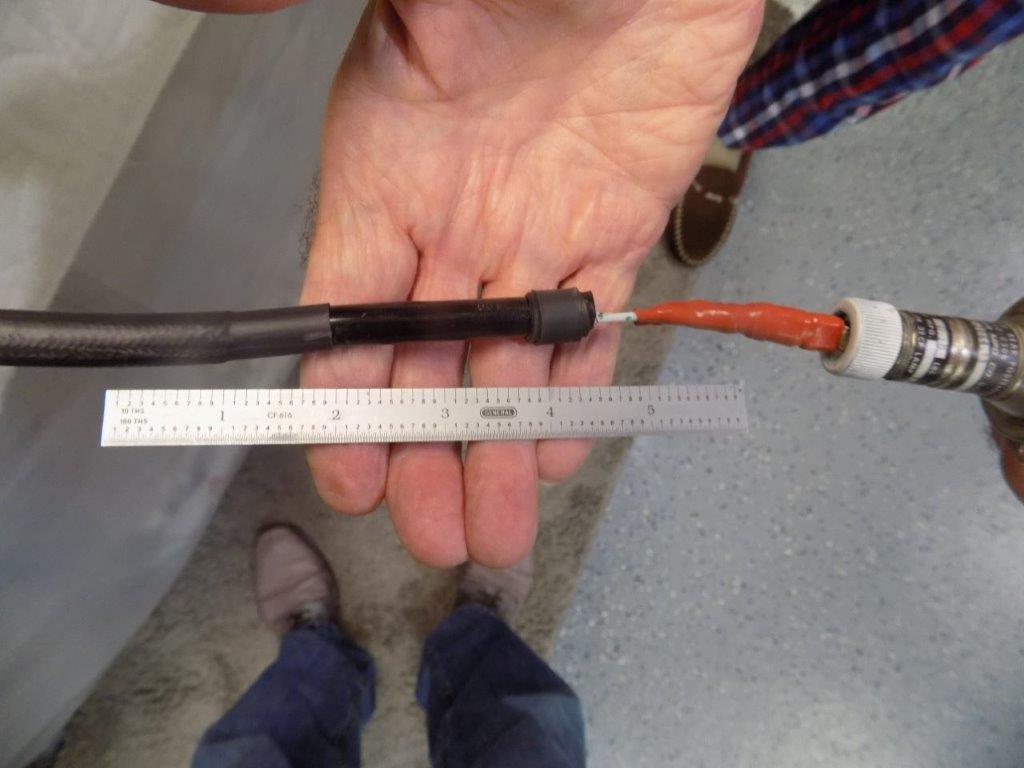

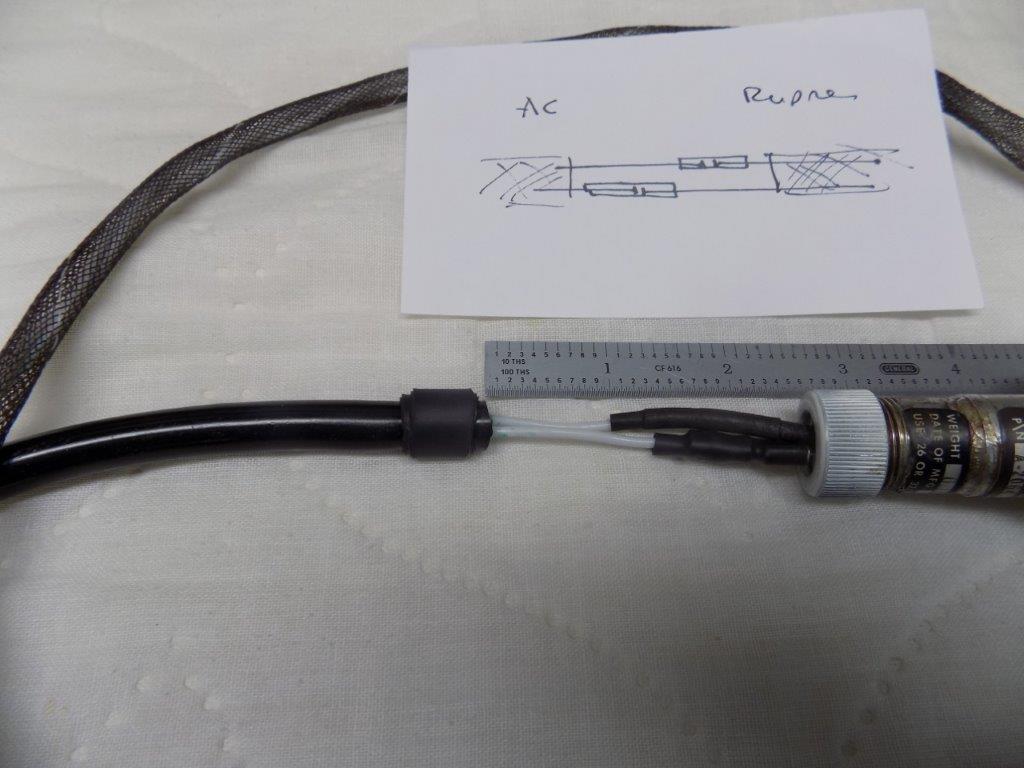

Rudder NAV light with Tygon transflex tube, silicone wrap, and abrasion resistant sheathing under shrink tube. Shrink tube squeezes abrasion resistant
sheathing over transflex Tygon tube. You can see the pattern of the sheathing under the shrink tube.
sheathing over transflex Tygon tube. You can see the pattern of the sheathing under the shrink tube.
- Attachments
-
- Rudder NAV light, Transflex Tygon Tube, and Sheathing under Shrink Tube.jpg (69.79 KiB) Viewed 4003 times
-
- Posts: 105
- Joined: Tue May 01, 2018 7:00 am
- Name: ConsultEngr
- Aircraft Type: Cessna 140
- Occupation-Interests:
- Contact:
Re: reskinning a rudder

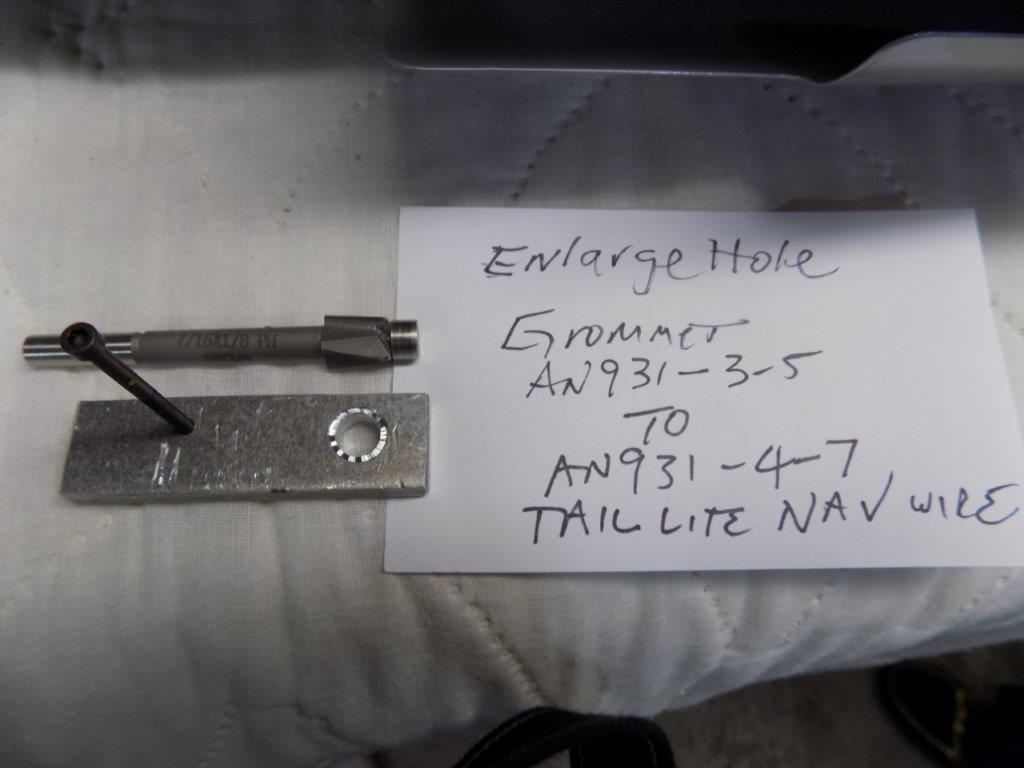

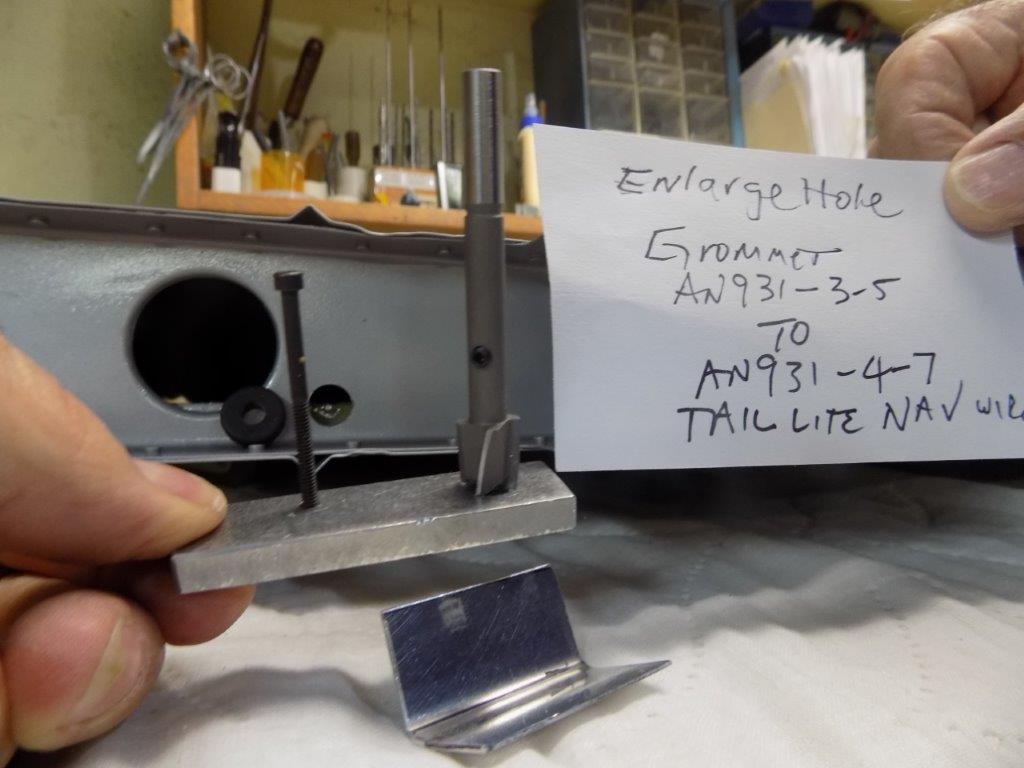

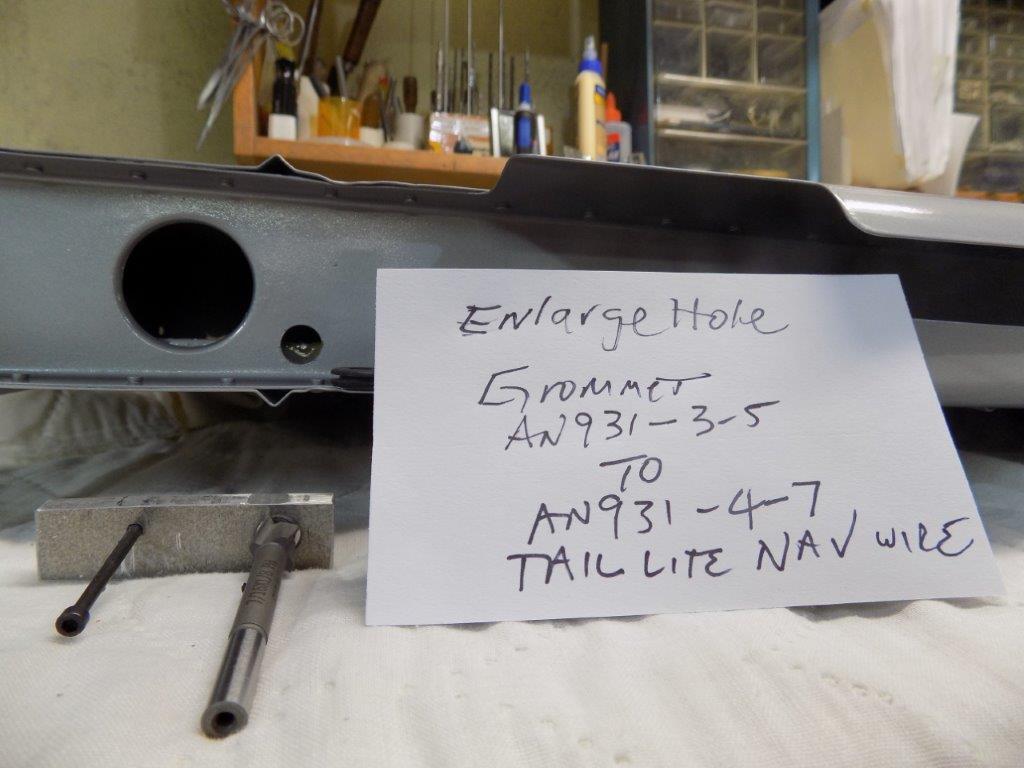

Also, I opened up the grommet hole for the rudder NAV tail light using a counterbore and pilot. In my rudder, there is an angle reinforcement behind the grommet hole so I put an aluminum stop block with the pilot hole diameter in it between the angle reinforcement and spar. The counterbore cut a nice hole through the thin skin spar. Counterbore and pilot obtained from Brown Aircraft Tools.
- Attachments
-
- Rudder NAV Light Grommet Hole Enlarge Tooling.jpg (65.97 KiB) Viewed 4003 times
-
- Rudder and Tooling to Enlarge NAV Light Grommet Hole1.jpg (74.95 KiB) Viewed 4003 times
-
- Rudder and Tooling to Enlarge NAV Light Grommet Hole.jpg (81.31 KiB) Viewed 4003 times
-
- Posts: 105
- Joined: Tue May 01, 2018 7:00 am
- Name: ConsultEngr
- Aircraft Type: Cessna 140
- Occupation-Interests:
- Contact:
Re: reskinning a rudder

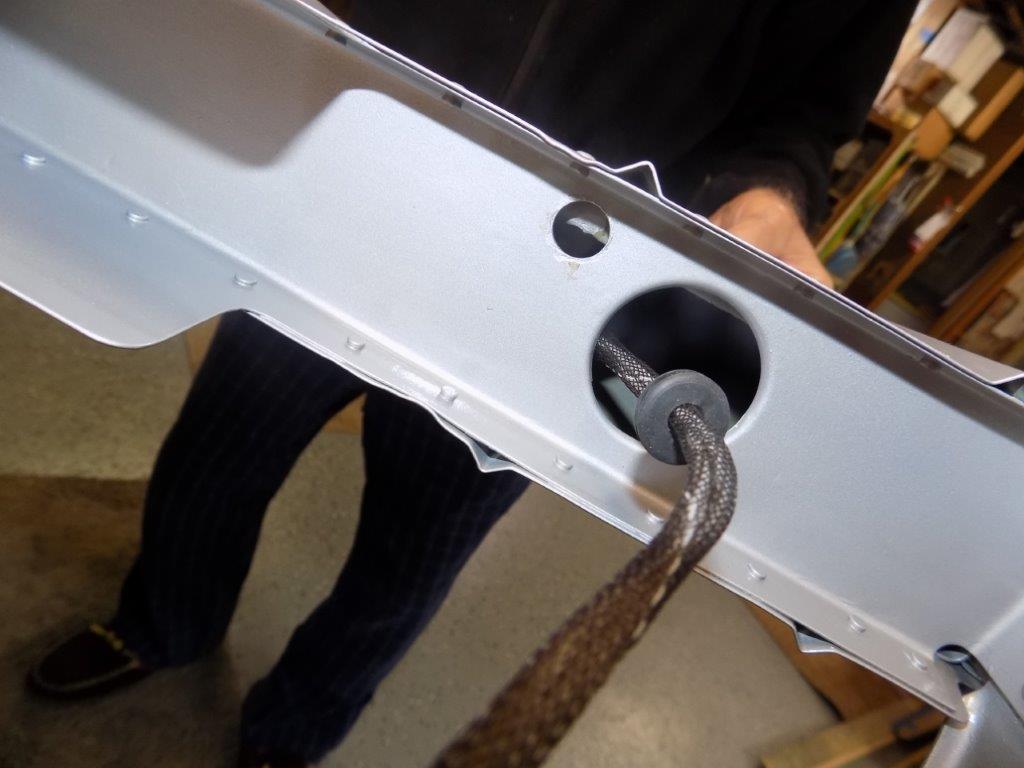

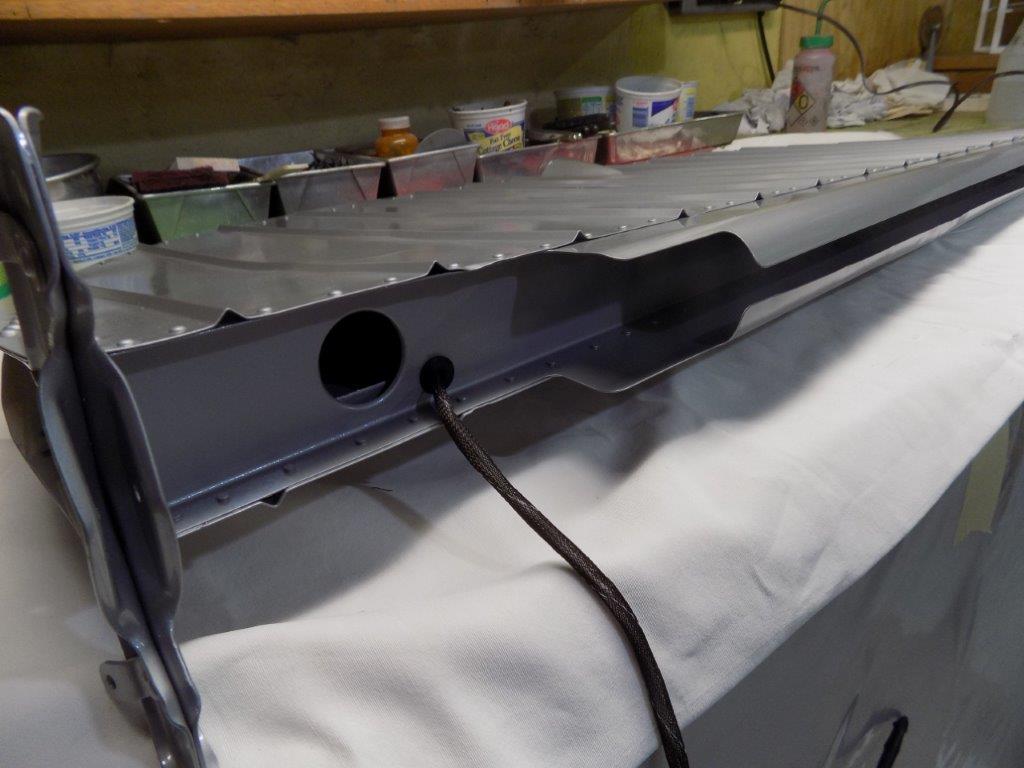

Here are photos of the twisted pair rudder NAV light wires encased in the expandable sleeving coming out the grommet hole.
- Attachments
-
- Rudder Two Pair Wire & Braid thru Enlarged Grommet Hole.jpg (80.05 KiB) Viewed 4003 times
-
- Rudder NAV Light wire with enlarged grommet.jpg (71.5 KiB) Viewed 4003 times
