NAS 205 Screw source
Posted: Sat Apr 10, 2021 7:05 pm
Looking for a source for the NAS 205-19 screw used to connect the Heim joint to the aileron. The NAS 205-19 callout in our parts book may be superseded. Thanks, Jim
The Cessna 120-140 Association Forum
A community dedicated to maintaining, restoring, and flying 120/140 aircrafts
https://cessna120140.com/Forum2018/
NAS 205 Screw source
Page 1 of 2
Re: NAS 205 Screw source
Posted: Sat Apr 10, 2021 8:46 pm
I show it supersedes to MS24694, and I think the dash numbers should be the same, but I'm not positive.
Re: NAS 205 Screw source
Posted: Sat Apr 10, 2021 9:03 pm
This may be of interest..

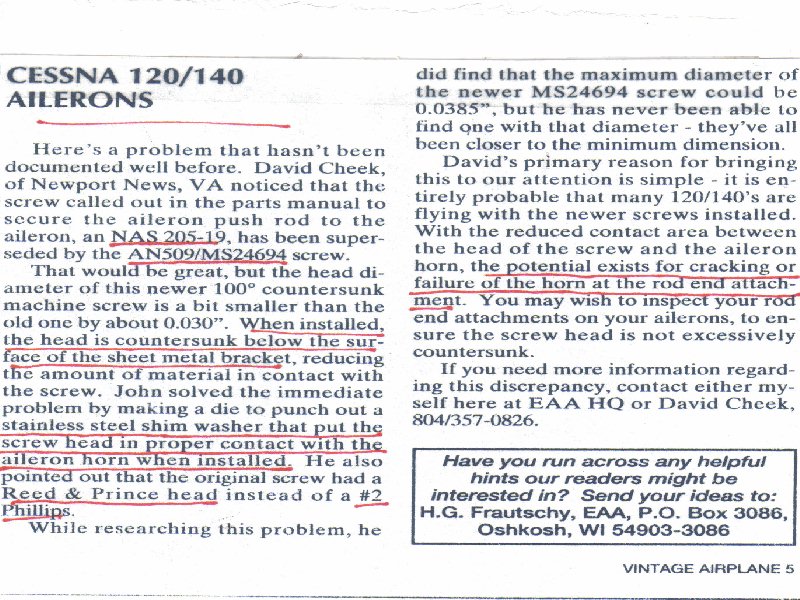

- aileronscrew.jpg (179.64 KiB) Viewed 3827 times
Re: NAS 205 Screw source
Posted: Sun Apr 11, 2021 7:37 am
And, now you know the rest of thee story! (Paul Harvey)
I wonder if a dimpling die for countersunk rivets would work to make the shim?
I wonder if a dimpling die for countersunk rivets would work to make the shim?
Re: NAS 205 Screw source
Posted: Sun Apr 11, 2021 12:21 pm
Thanks John, that explains a few things. Wing was dissembled when I started my project and I found only one screw for the aileron - Heim connection . When inserted it lays shallow (that's what made me think I had the wrong screw). No cracks at this time but I think I'll try my hand at making a shim. Thanks for the news clip.
Re: NAS 205 Screw source
Posted: Sun Apr 11, 2021 6:15 pm
This'll work:
Mac
A 100 degree SS CSK washer, carefully "machined" down to fit the screw head & hinge countersink...fit/shim depth is "perfect". While I can't guarantee that it's acceptable in every case, I know at least one IA who saw it as "minor". It's easy (...well, relatively) to file the outer edge off the washer to the point that it fits both screw head & hinge countersink.. FWIW, this "repair" has been known to last for 20+ years with no indication of wear. (Yikes...this one needs cleaning up just a bit!)
Mac

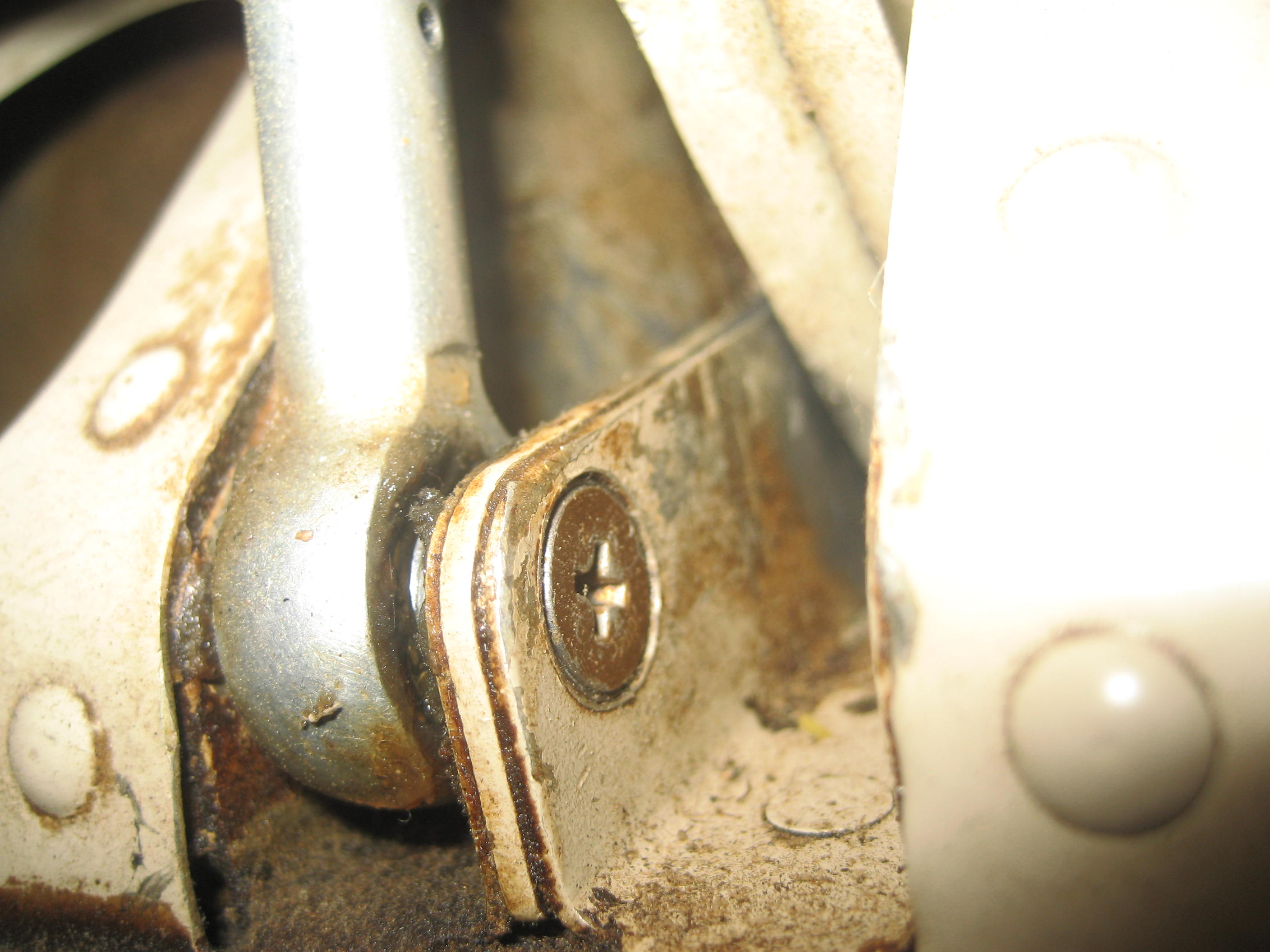

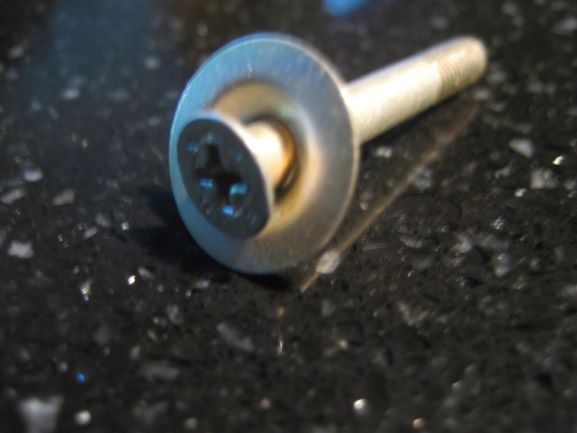

- IMG_2123.JPG (26.47 KiB) Viewed 3765 times
- IMG_2115.JPG (437.58 KiB) Viewed 3765 times
A 100 degree SS CSK washer, carefully "machined" down to fit the screw head & hinge countersink...fit/shim depth is "perfect". While I can't guarantee that it's acceptable in every case, I know at least one IA who saw it as "minor". It's easy (...well, relatively) to file the outer edge off the washer to the point that it fits both screw head & hinge countersink.. FWIW, this "repair" has been known to last for 20+ years with no indication of wear. (Yikes...this one needs cleaning up just a bit!)
MacRe: NAS 205 Screw source
Posted: Sun Apr 11, 2021 7:13 pm
That's called a "Tinnerman Washer" and it's perfect for the purpose! you will have to cut it down flush, though, or it may catch on the rib.
Re: NAS 205 Screw source
Posted: Thu Oct 12, 2023 4:27 pm
Would anyone happen to know the exact MS24694- dash number would be? I don't have my screw out of the aileron fitting and want to have something on hand before I start inspecting. Can't get a good measure on the grip while it's on the wing....thanks!
Re: NAS 205 Screw source
Posted: Thu Oct 12, 2023 8:35 pm
I could tell you if I had the spec sheet for the NAS205. Unfortunately, I haven't been about to find out a single thing about it.
I can make an "educated" guess, based on patterns between dash numbers for AN, NAS and MS screws. If you think the grip length (the height of the head plus the length of the unthreaded portion) might be 3/4", then the dash number would be -61. AN509-19 crosses to MS24694-61.
I can make an "educated" guess, based on patterns between dash numbers for AN, NAS and MS screws. If you think the grip length (the height of the head plus the length of the unthreaded portion) might be 3/4", then the dash number would be -61. AN509-19 crosses to MS24694-61.
Re: NAS 205 Screw source
Posted: Thu Oct 12, 2023 8:49 pm
That's what I came up with for a best guess crossing to an AN509-19 then to the MS24694-61. With the cup washer I think I'll still be OK. Guess I needed someone's blessings-
