exhaust stack rubbing on intake stack

Ask Questions and Offer Advice Related to the Cessna 120 & 140 Type
Forum rules
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
vinceo
Posts: 16
Joined: Sat Apr 27, 2024 9:59 am
Name: Vince
Location: Louisiana
Aircraft Type: 1946 C-140
Occupation-Interests: Retired.
Contact:

exhaust stack rubbing on intake stack

Post by vinceo »

My C-85-12 has a problem. I bought my 140 last spring. I just noticed
the exhaust stack on Cylinder #2 is rubbing the intake tube on cylinder
#4. My exhaust is the straight pipe model with a shroud over each
down-pipe. Both of these are non-flexible and I am worried about
one or the other rupturing in due time. The situation is not serious
yet. The engine has rebuilt cylinders installed about 150 hours ago.
Any ideas on how to achieve separation of these two. Just need a
little space there?
User avatar
6643
Posts: 2449
Joined: Tue May 01, 2018 7:00 am
Name: John C
Location: KLCI, NH
Aircraft Type: 1946 C140/C90
Occupation-Interests: A&P, semi-retired
Contact:

Re: exhaust stack rubbing on intake stack

Post by 6643 »

Off hand I'd say the exhaust stack is bent, or has been repaired incorrectly. Can you post a picture?
vinceo
Posts: 16
Joined: Sat Apr 27, 2024 9:59 am
Name: Vince
Location: Louisiana
Aircraft Type: 1946 C-140
Occupation-Interests: Retired.
Contact:

Re: exhaust stack rubbing on intake stack

Post by vinceo »

John, Turns out I find that exhaust stack was repaired some years ago
and the new weld probably created the problem. I can see no answer than
to remove the exhaust and get it reworked.

The other problem is finding new metal shrouds for my straight pipe 140.
No-one seems to be making them.

Vince
V529
Posts: 591
Joined: Tue May 01, 2018 7:00 am
Name: Victor G
Location: Michigan
Aircraft Type: C-120
Occupation-Interests: Work on airplanes till the cows come home..........they're still out.
Contact:

Re: exhaust stack rubbing on intake stack

Post by V529 »

vinceo wrote: Sat Oct 12, 2024 11:06 am John, Turns out I find that exhaust stack was repaired some years ago
and the new weld probably created the problem. I can see no answer than
to remove the exhaust and get it reworked.

The other problem is finding new metal shrouds for my straight pipe 140.
No-one seems to be making them.

Vince
I have a decent set of straight pipes if you can't get yours welded. Shipping would probably be expensive. $60.........ish or so I would imagine. Finding good straight shrouds ............used........will take some time. Post in here and in the parts section. You are correct, no one makes them. Your best bet is salvage yards. Try Todd at Smokin' Rivet in Eau Claire Wisconsin. He specializes in 120/140 aircraft. He may have a whole set?
vinceo
Posts: 16
Joined: Sat Apr 27, 2024 9:59 am
Name: Vince
Location: Louisiana
Aircraft Type: 1946 C-140
Occupation-Interests: Retired.
Contact:

Re: exhaust stack rubbing on intake stack

Post by vinceo »

I may need to take you upon that. The exhaust stack was repaired some time back
I seen in the logbook. The repair added thickness to the stack so much so that it rubs
right up on the intake tube for #4. Other than taking it off and reducing metal on
that stack, which I don't want to do. I don't think there is a fix.

I will get back to you after I decide. I will try and remember to take my camera
with me and photo this.

Thanks
Vince
vinceo
Posts: 16
Joined: Sat Apr 27, 2024 9:59 am
Name: Vince
Location: Louisiana
Aircraft Type: 1946 C-140
Occupation-Interests: Retired.
Contact:

Re: exhaust stack rubbing on intake stack

Post by vinceo »

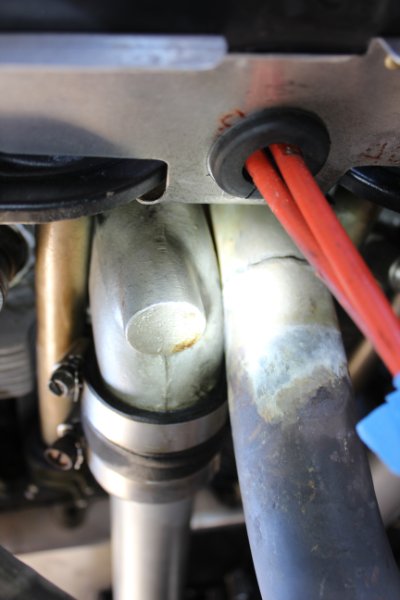

Attached is a photo of the situation. The two components are solid. There is no sign of metal "working" as there is no dust or metal particle traces but regardless there should be a small space between the two.
Attachments
72227 annual 065.JPG
72227 annual 065.JPG (64.32 KiB) Viewed 1175 times
User avatar
6643
Posts: 2449
Joined: Tue May 01, 2018 7:00 am
Name: John C
Location: KLCI, NH
Aircraft Type: 1946 C140/C90
Occupation-Interests: A&P, semi-retired
Contact:

Re: exhaust stack rubbing on intake stack

Post by 6643 »

Looks to me like that stack is broken! Rubbing is the least of your problems.
vinceo
Posts: 16
Joined: Sat Apr 27, 2024 9:59 am
Name: Vince
Location: Louisiana
Aircraft Type: 1946 C-140
Occupation-Interests: Retired.
Contact:

Re: exhaust stack rubbing on intake stack

Post by vinceo »

Thanks, regardless its coming off for full evaluation.
6277
Posts: 233
Joined: Tue May 01, 2018 7:00 am
Name: Ray Hunter
Location: Ann Arbor, MI
Aircraft Type: C-140
Occupation-Interests: Retired AF, retired B-17 pilot for Michigan Flight Museum
Contact:

Re: exhaust stack rubbing on intake stack

Post by 6277 »

Take the straight pipes off and send them to Dawleys. They will fix the problem. The shrouds are another issue. Don't have an answer.
vinceo
Posts: 16
Joined: Sat Apr 27, 2024 9:59 am
Name: Vince
Location: Louisiana
Aircraft Type: 1946 C-140
Occupation-Interests: Retired.
Contact:

Re: exhaust stack rubbing on intake stack

Post by vinceo »

I am not familiar with Dawleys but a quick search....looks like they have been taken over by
Tailwind Technologies in 2021. Thanks for the tip.
Post Reply
