Hello! Does anyone happen to have pictures of a very original battery box and installation? Figure 25 of the parts book shows the battery cables and solenoid on the front (forward) side of the box, but it seems like every installation I have seen has the cables and solenoid in the back (aft). Similarly, most of the battery boxes that I have seen with a hinged lid (like the one in the parts book) have the taller bottom side in the back vs. in front as depicted in the parts book.
Thanks in advance!
- John
Original Battery Box Installation
Forum rules
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
-
4290
- Posts: 4
- Joined: Tue Jun 12, 2018 12:11 am
- Name: John NC2815N
- Aircraft Type: Cessna 120
- Occupation-Interests:
- Contact:
-
6643
- Posts: 2444
- Joined: Tue May 01, 2018 7:00 am
- Name: John C
- Location: KLCI, NH
- Aircraft Type: 1946 C140/C90
- Occupation-Interests: A&P, semi-retired
- Contact:
Re: Original Battery Box Installation
This post shows the front and back of the battery box. The hinges on the front near the bottom do not have hinge pins. AN clevis pins are used to secure the box closed. The back of the box (high side, third photo) shows the mounting holes for the master solenoid and the holes for the cables.
-
VIP620
- Posts: 42
- Joined: Tue May 01, 2018 7:00 am
- Name: ken tengesdal
- Location: 69nd
- Aircraft Type: 120
- Occupation-Interests: fly the 120 over sunflower fields and shoot blackbirds at the same time from august thru october or until the crop is harvested
- Contact:
Re: Original Battery Box Installation
- 003.JPG (122.01 KiB) Viewed 4379 times
-
6298
- Posts: 244
- Joined: Tue May 01, 2018 7:00 am
- Name: Randy Thompson
- Location: California
- Aircraft Type: Cessna 140
- Occupation-Interests: Work on airplanes and engines
- Contact:
Re: Original Battery Box Installation
I have always seen that solenoid on the back side. same battery box.
Randy Thompson A&P IA Pilot
Hold STC SA547EA for installation of O-200 engine in Cessna 120/140 and 140A"s
Overhaul small Continentals
Hold STC SA547EA for installation of O-200 engine in Cessna 120/140 and 140A"s
Overhaul small Continentals
-
8342
- Posts: 293
- Joined: Sun Oct 14, 2018 11:55 pm
- Name: Rick F
- Location: KUSE Wauseon OH
- Aircraft Type: C-140 (sold)
- Occupation-Interests: Captain B-777 (Retired)
- Contact:
Re: Original Battery Box Installation
Looking closely at the IPC picture the arrow for the inset is pointing at the back side of the battery box installation.
I assume they used artistic license to turn the picture around for clarity for how the solenoid is mounted along with the wiring.
Just a guess.
Rick
I assume they used artistic license to turn the picture around for clarity for how the solenoid is mounted along with the wiring.
Just a guess.
Rick
-
6597
- Posts: 374
- Joined: Tue May 01, 2018 7:00 am
- Name: David Sbur
- Location: Vancouver WA KVUO
- Aircraft Type: '46 140 0-200A
- Occupation-Interests: Agriculture
- Contact:
Re: Original Battery Box Installation

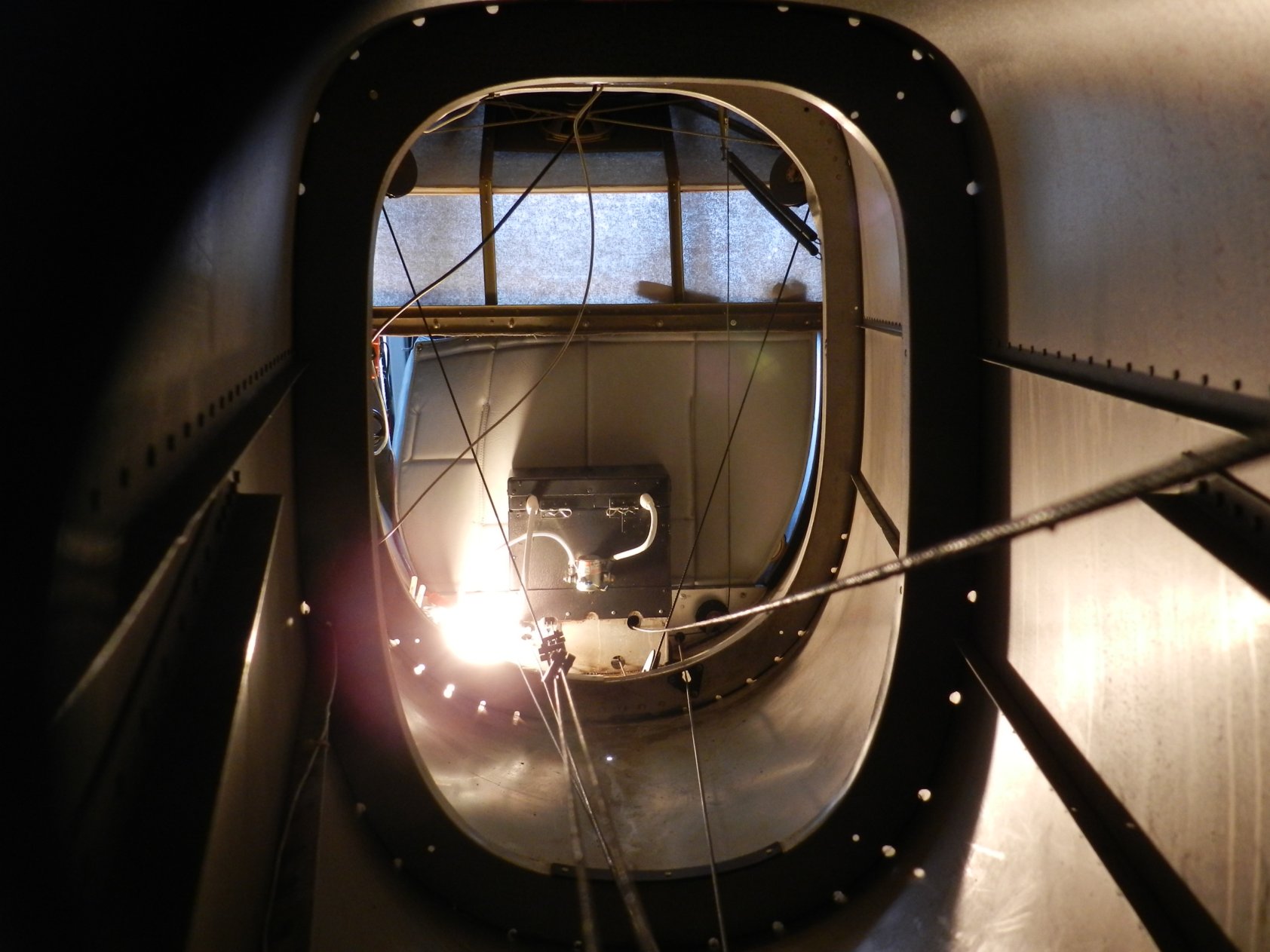

On my bird, '46
- Attachments
-
- 5-25-12 006.jpg (228.57 KiB) Viewed 4337 times
-
6643
- Posts: 2444
- Joined: Tue May 01, 2018 7:00 am
- Name: John C
- Location: KLCI, NH
- Aircraft Type: 1946 C140/C90
- Occupation-Interests: A&P, semi-retired
- Contact:
Re: Original Battery Box Installation
I'm not even going to ask how you got that picture...
-
8424
- Posts: 217
- Joined: Sun Mar 17, 2019 11:43 am
- Name: Steve A H
- Location: OK74
- Aircraft Type: 1950 C140A
- Occupation-Interests: Retired
- Contact:
Re: Original Battery Box Installation
"I'm not even going to ask how you got that picture..."
Maybe a little bitty drone with a little bitty camera!
Steve
Maybe a little bitty drone with a little bitty camera!
Steve
