WTB: window latches, glovebox door, hub caps
Posted: Mon Aug 31, 2020 10:38 pm
by meloosifah
Hi - just purchased a 140 last week and in need of a glove box door, hub caps and window latches. I would also be interested in pictures and measurements on the latches if no one has any for sale.
Re: WTB: window latches, glovebox door, hub caps
Posted: Tue Sep 01, 2020 9:49 am
by 8281
I can make You a pair of Window Latches under the FAA Regulations ,Owner Produced Parts (OPP) .
So far , I haven't been able to upload Pictures to this Site ! But I can send Pictures of the Latches
via. my e-mail .
johnlobue@charter.net
Re: WTB: window latches, glovebox door, hub caps
Posted: Tue Sep 01, 2020 3:58 pm
by 6643
8281 wrote: ↑Tue Sep 01, 2020 9:49 am
So far , I haven't been able to upload Pictures to this Site !
Everything you wanted to know about posting pictures but were afraid to ask.
Re: WTB: window latches, glovebox door, hub caps
Posted: Wed Sep 02, 2020 11:00 am
by 8281

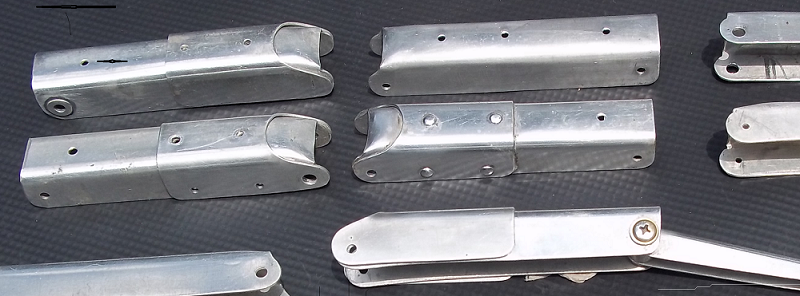

- Cessna C-120140 window latch parts 002.png (389.38 KiB) Viewed 8394 times
Re: WTB: window latches, glovebox door, hub caps
Posted: Wed Sep 02, 2020 1:21 pm
by 8281

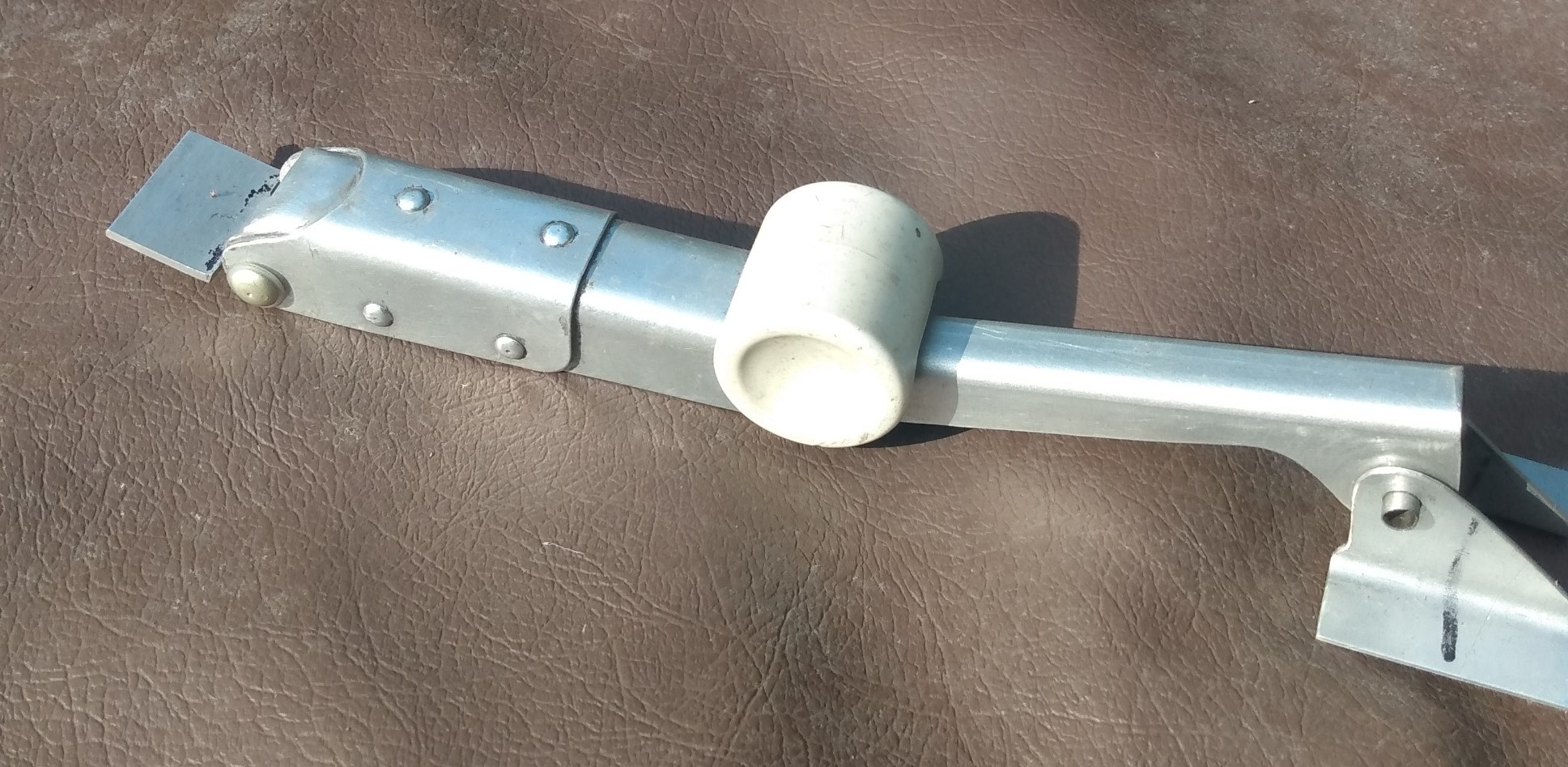

- image000000 Cessna Window Latch (2).jpg (477.78 KiB) Viewed 8392 times
Re: WTB: window latches, glovebox door, hub caps
Posted: Thu Sep 03, 2020 2:22 pm
by 8474
Hi John,
very nice job on those latches, what have you got them priced at?
Re: WTB: window latches, glovebox door, hub caps
Posted: Thu Sep 03, 2020 2:24 pm
by 8474
meloosifah wrote: ↑Mon Aug 31, 2020 10:38 pm
Hi - just purchased a 140 last week and in need of a glove box door, hub caps and window latches. I would also be interested in pictures and measurements on the latches if no one has any for sale.
https://www.ebay.ca/itm/AIRCRAFT-WHEEL- ... xyzGlQ7jb4
Re: WTB: window latches, glovebox door, hub caps
Posted: Thu Sep 03, 2020 4:07 pm
by 8281
Thank You 8474 !
There is a lot more to the latch than the pictures show !
1. There is a double reinforcement on the large link on one end.
2. The smaller link is formed with .050 in. al. vs. .040 in. al. ( that was originally used in the 46' and later production .)
3. Also the smaller link has an upgraded design that is larger in Girth. ( Normally where that link breaks.)
4. There are nylon washers in-between the moving hinged parts.
The latch will come with a "TAB" (not pictured) for opening and closing of the window latch.
If the White Ivory is to Your taste , The Owner of the A/C will need to order one and have it
mailed to me to be fitted as it will take a different pivot pin .
The price is $195 ea. plus $20 shipping and insurance or $390 per pair Total.
The Latch will be made upon the request of the Owner of the A/C Per FAA Regulations ,Owner Produced Parts (OPP).
Thanks/ John
Re: WTB: window latches, glovebox door, hub caps
Posted: Thu Sep 03, 2020 5:14 pm
by 8474
Thanks John,
That sure seems reasonable to me, especially considering the Wag-Aero prices
Mine are still serviceable, but all sloppy in the linkages. I will put yours on my wish list for sure.
