I’m looking for part number 0411854 - Shield Assembly -floorboard - center. It’s on pages 78-79 of the Yellow parts catalog.
Mine is a mess. It looks homemade, doesn’t fit very well, and has several cracks in the flanges. Not to mention that someone appears to have painted it with contact cement to hold down the carpet.

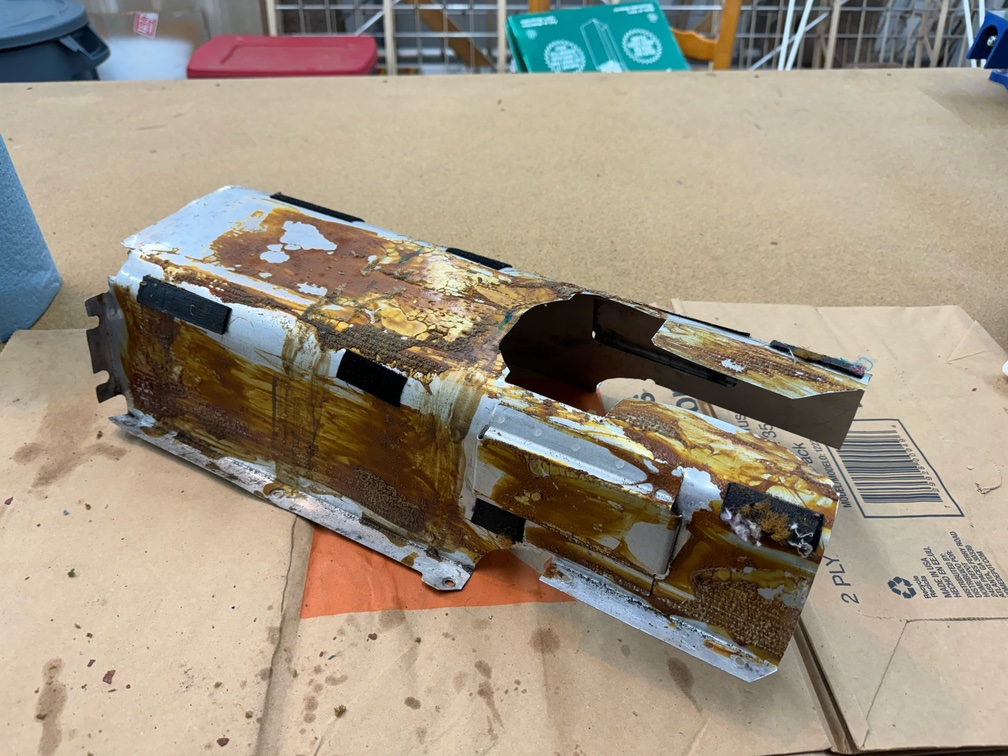

Photo of mine attached.
WTB floorboard center shield assembly
Forum rules
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
-
hotrodmac
- Posts: 71
- Joined: Mon Aug 12, 2019 12:33 am
- Name: Lance B
- Location: Mint Hill, NC
- Aircraft Type: C140
- Occupation-Interests: I.T. - Current 120-140 Assoc. NC Rep.
- Contact:
WTB floorboard center shield assembly
- Attachments
-
- IMG_9287.JPG (305.4 KiB) Viewed 4496 times
'46 C140
120-140 Assoc. NC Rep.
120-140 Assoc. NC Rep.
-
6643
- Posts: 2443
- Joined: Tue May 01, 2018 7:00 am
- Name: John C
- Location: KLCI, NH
- Aircraft Type: 1946 C140/C90
- Occupation-Interests: A&P, semi-retired
- Contact:
Re: WTB floorboard center shield assembly
I doubt if it's home made. It looks pretty authentic to me! Try acetone if you want to remove the contact cement. Looks like someone clipped the corners off of the slot for the control column to make it easier to install. You might say they don't fit very well... There's an article in the Neal Wright archives about those two boxes on either side of the tunnel.
viewtopic.php?f=10&t=122
viewtopic.php?f=10&t=122
John Cooper
www.skyportservices.net
www.skyportservices.net
-
8413
- Posts: 92
- Joined: Sun Mar 03, 2019 3:11 pm
- Name: Josh C
- Location: Bonney Lake, WA
- Aircraft Type: 140A/C90-14F
- Occupation-Interests: Telecommunications
- Contact:
Re: WTB floorboard center shield assembly
Tim Mix just built a bunch of those and has them for sale...
https://mixaircraftsolutionsllc.wordpress.com
Josh
https://mixaircraftsolutionsllc.wordpress.com
