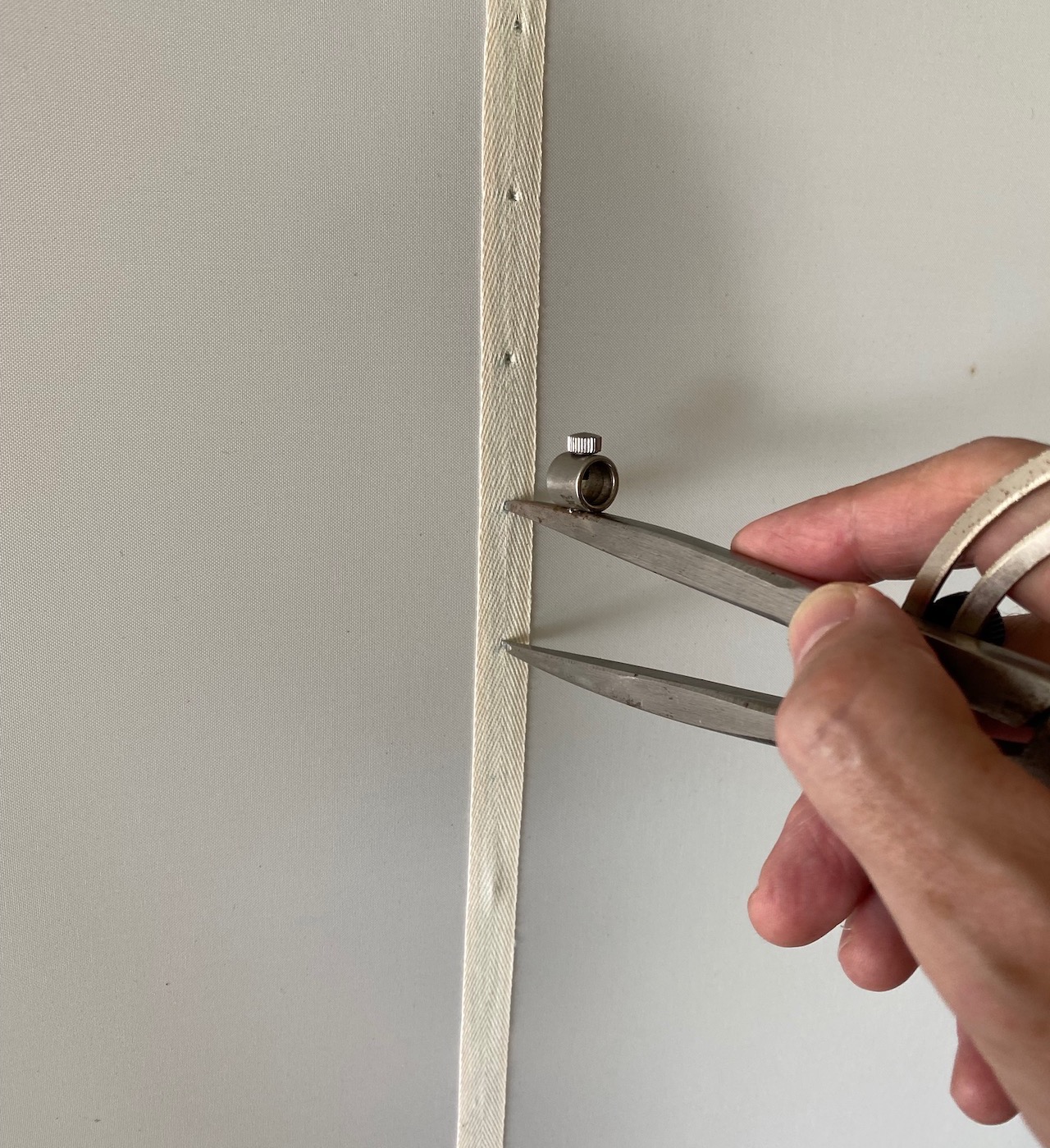

Jul-Aug 2021 (Con't) - Once the holes were found, then I laid each cotton rib tape on a layer of Eko-Bond to secure it. Once somewhat secure, then I poked holes through with the compass again to set the holes.
Next I set the fabric clips once the bond underneath the cotton tape dried. Some pushed in. Many did not. For the tough ones, I used a piece of waxed flat string to pull the bottom leg and pushed it in. Then the waxed string just yanked out. Sometimes a gentle tap with a small plastic mallet helped but you have to be careful not to use force and have good aim. The string worked best for the really tough ones to open the tension but wear a piece of tape around the joint on your little finger to prevent the waxed string from cutting through your skin.
After all the fabric clips were installed, next is adding the spar and rib tapes.
The Rebirth of Cessna 140 NC3771V
Forum rules
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
- regular122
- Posts: 112
- Joined: Mon Sep 16, 2019 11:01 pm
- Location: Oklahoma
- Name: Steve
- Aircraft Type: 1948 C140 C90
- Occupation-Interests:
- Contact:
Re: The Rebirth of Cessna 140 NC3771V
Last edited by regular122 on Fri Dec 03, 2021 10:34 pm, edited 2 times in total.
- regular122
- Posts: 112
- Joined: Mon Sep 16, 2019 11:01 pm
- Location: Oklahoma
- Name: Steve
- Aircraft Type: 1948 C140 C90
- Occupation-Interests:
- Contact:
Re: The Rebirth of Cessna 140 NC3771V
Oshkosh Break - Oshkosh cut some of my late July work but was well worth the vacation time. I had the good pleasure too talk to Ken and Lorraine Morris about their Cessna 140A 'Uno' which won 'Vintage Grand Champion'--a true honor for anyone. They gave me some very helpful tips and answered a ton of my questions. Interestingly, the very first Cessna 140A (N3779V) was only 8 serial numbers off of my Cessna 140 (N3771V), making mine one of the very last production days of Cessna 140s. My plane was built in late 1948.

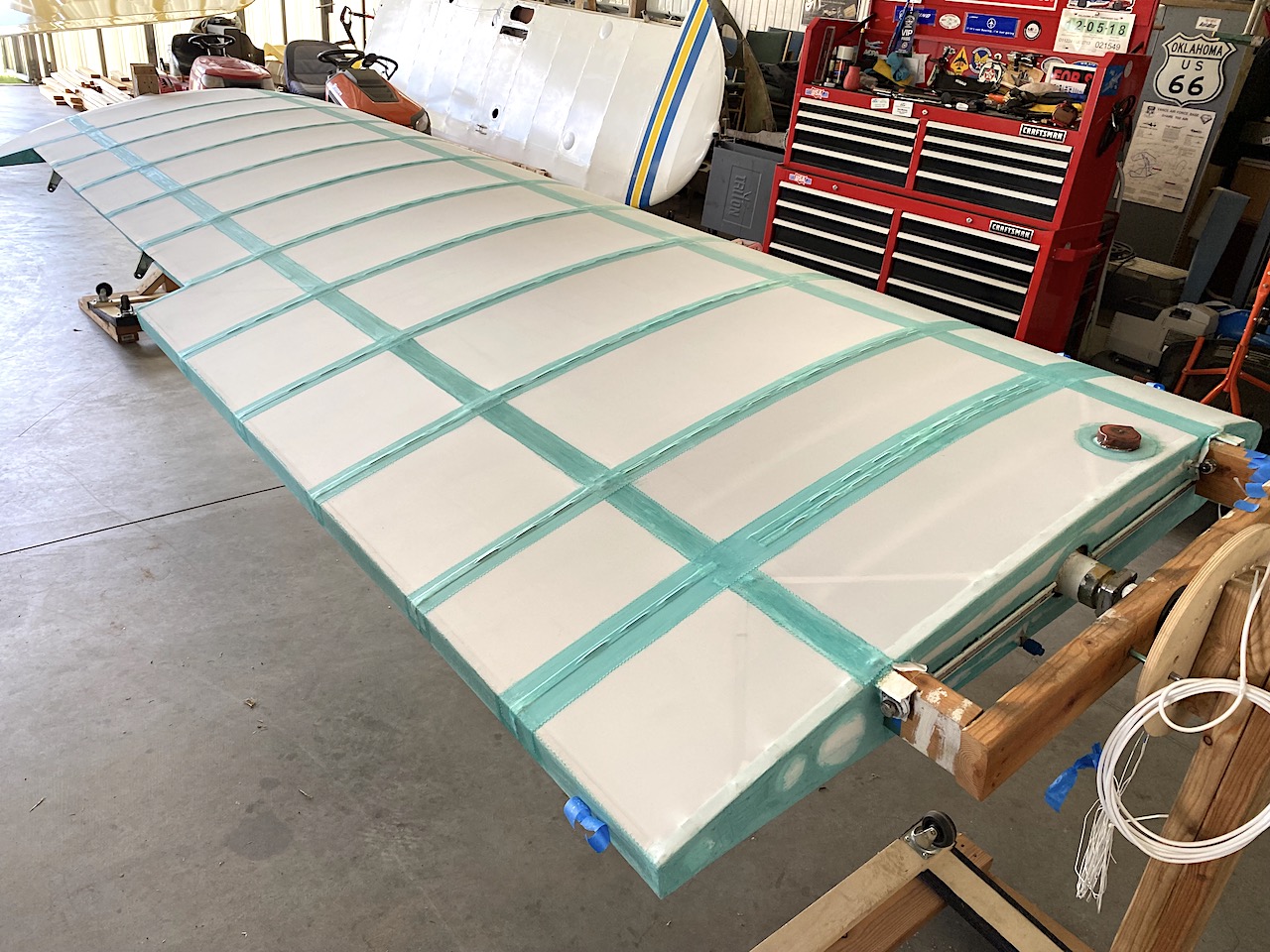

Once I got back to it, next came the spar tapes. I used 2" pre-shrunk, pinked, Superflite tape (SF 104-2P) on both the spars and the ribs as per the instructions from Stewarts. The first one I laid down a pre-glue and then the tape on top but found that if I secured the tape with painters tape, I could just brush right through the 2" tape and secure it that way. It made for a much cleaner application. I began to brush though all other applications in this manner and would only use a pre-glue if working with edges or something that needed a good set.
One thing I have already learned in teaching myself about how to restore this plane, is that there is a lot of little jobs that look like not much but become very time-consuming. Especially when working alone. Still, each day I can get, about three or 4 a month, I just keep working it. It all adds up.
Once I got back to it, next came the spar tapes. I used 2" pre-shrunk, pinked, Superflite tape (SF 104-2P) on both the spars and the ribs as per the instructions from Stewarts. The first one I laid down a pre-glue and then the tape on top but found that if I secured the tape with painters tape, I could just brush right through the 2" tape and secure it that way. It made for a much cleaner application. I began to brush though all other applications in this manner and would only use a pre-glue if working with edges or something that needed a good set.
One thing I have already learned in teaching myself about how to restore this plane, is that there is a lot of little jobs that look like not much but become very time-consuming. Especially when working alone. Still, each day I can get, about three or 4 a month, I just keep working it. It all adds up.
Last edited by regular122 on Mon Dec 06, 2021 7:39 am, edited 2 times in total.
- regular122
- Posts: 112
- Joined: Mon Sep 16, 2019 11:01 pm
- Location: Oklahoma
- Name: Steve
- Aircraft Type: 1948 C140 C90
- Occupation-Interests:
- Contact:
Re: The Rebirth of Cessna 140 NC3771V

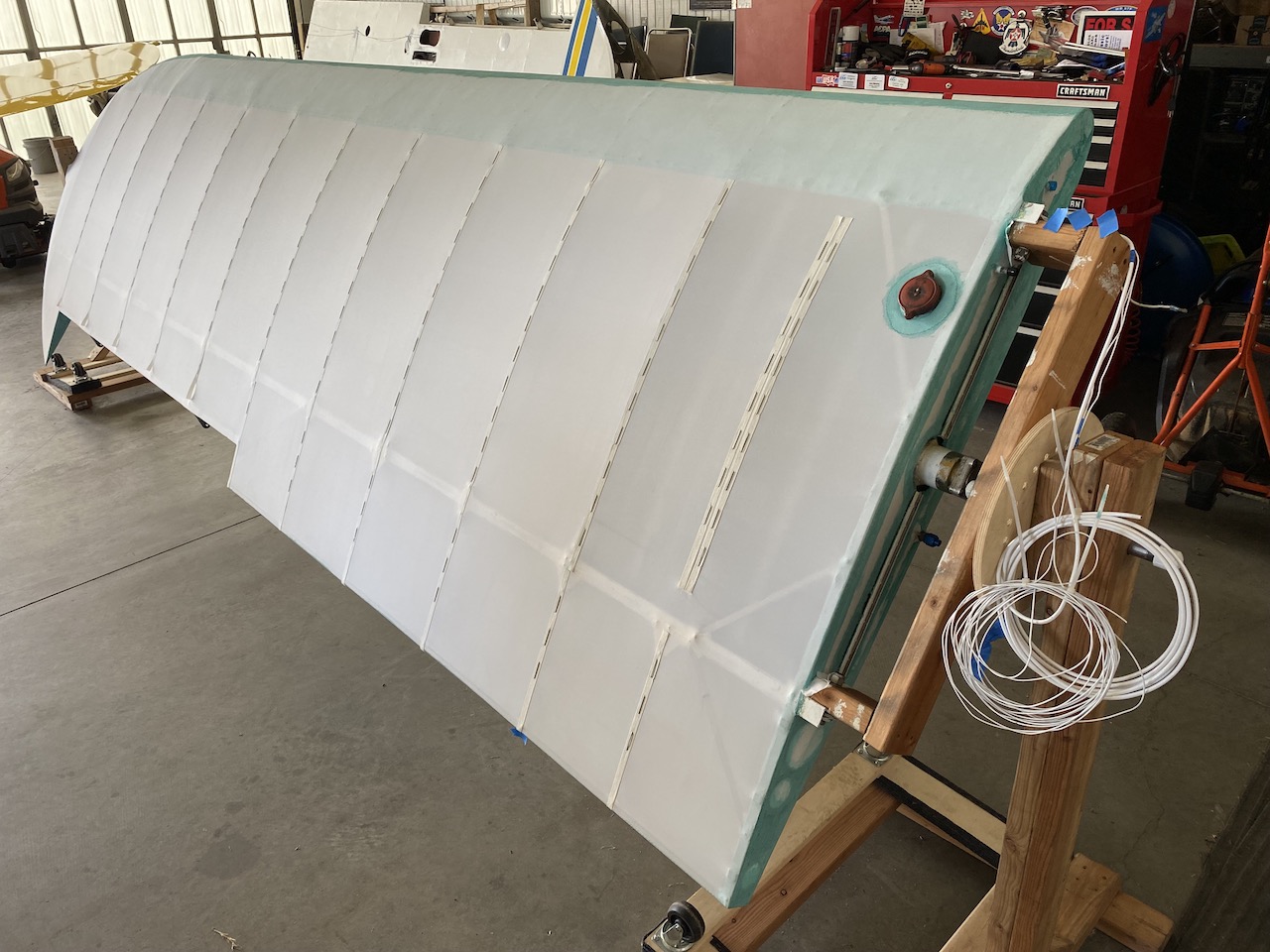

Sep 2021 - After finishing the top fabric rib and spar tapes, I then repeated the cotton tapes, installed the fabric clips, and then laid the spar tapes and rib tapes on the bottom fabric.
- regular122
- Posts: 112
- Joined: Mon Sep 16, 2019 11:01 pm
- Location: Oklahoma
- Name: Steve
- Aircraft Type: 1948 C140 C90
- Occupation-Interests:
- Contact:
Re: The Rebirth of Cessna 140 NC3771V
Sep 2021 (Con't) - Next I applied the lower fabric Rib Tapes.

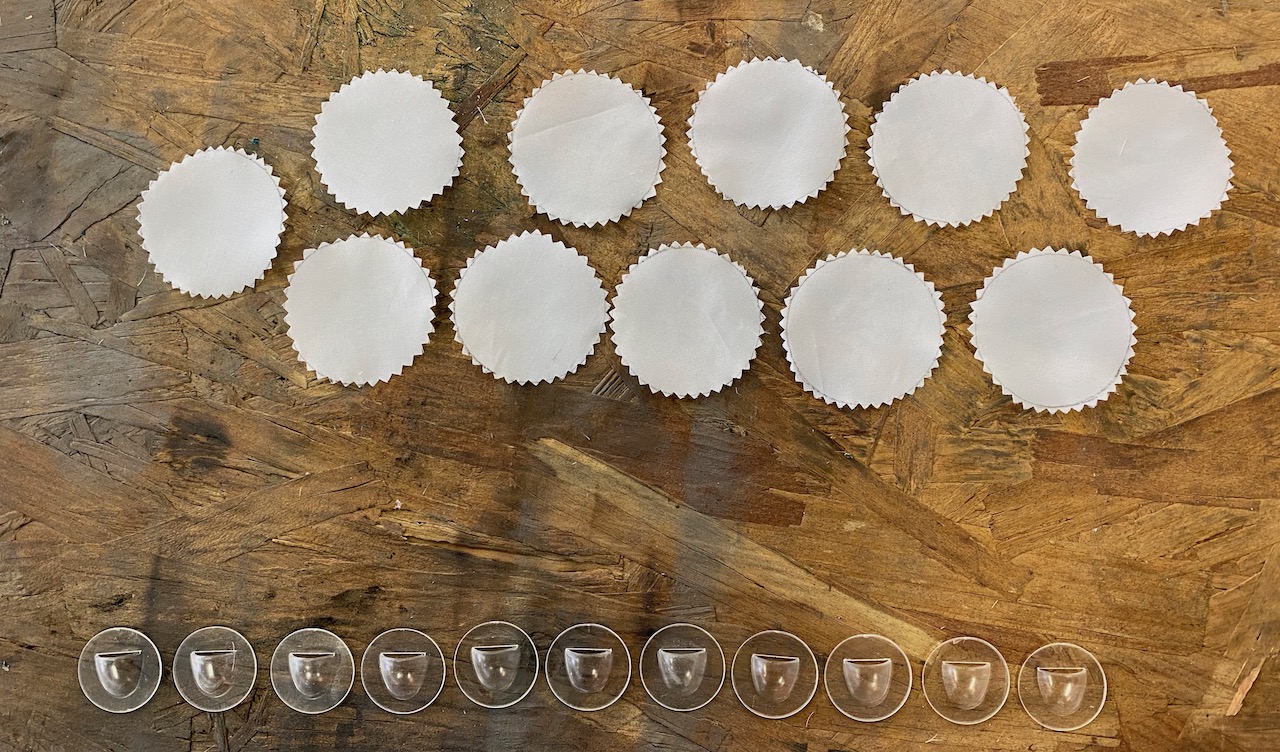

Nov 2021 - After about an eight week hiatus, I was able to get back to some work on the wing. After the Rib Tapes, I then made inspection cover reinforcements.
