I have had problems with the right door.
The previous owner used piece of wire to connect the handle and the door latch. Go figure???
I looked at drawing and shows a flat bar.
Any one know where I could get one?
Door parts
Forum rules
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
You must be a member of the Cessna 120-140 Association in order to post new topics, reply to existing topics, or search for information on this forum. Use the "Join" link in the red menu bar.
-
- Posts: 10
- Joined: Wed May 18, 2022 5:21 pm
- Name:
- Aircraft Type:
- Occupation-Interests:
- Contact:
-
- Posts: 96
- Joined: Tue May 01, 2018 7:00 am
- Name:
- Aircraft Type:
- Occupation-Interests:
- Contact:
Re: Door parts
I am in the process of restoring an old beat-up 140 and finished the work on the doors a few months ago so I know what you are looking for. The “bar” is nothing but a flat strap of 2024-T3 aluminum. I made new ones for my doors because the holes in the ends were alongated. They are very simple and easy to make. I can measure one of the old ones for you if it will help.
Steve Hawley
Steve Hawley
-
- Posts: 10
- Joined: Wed May 18, 2022 5:21 pm
- Name:
- Aircraft Type:
- Occupation-Interests:
- Contact:
Re: Door parts

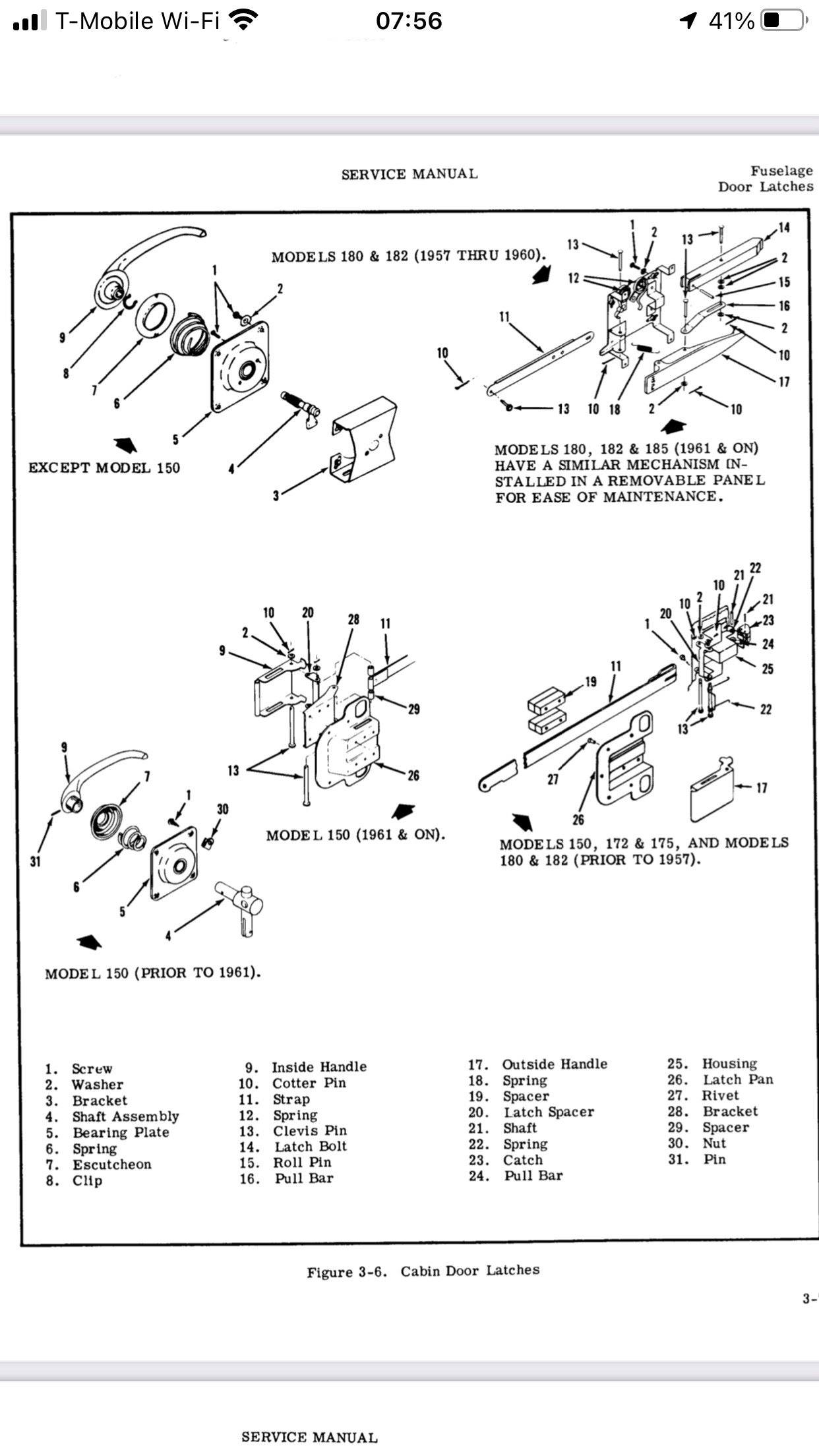

Thanks for the info. I found one for the right side and will install it later in the week. If was home in my shop, I could fabricate one. Wont be home till sept, to hot in AZ. I found one on ebay and plan on installing it soon. I let you know if i ru into any problems. This is the schematic i found on it.
- Attachments
-
- C140 Door Bracket.jpg (298.22 KiB) Viewed 900 times
